Why gear teeth have that special curved shape (involute)

Look closely at a gear tooth and it is tempting to think the curved side was chosen because it looks smooth. The shape is not decorative. Most modern spur and helical gears use an involute profile, which is a curve generated by unwinding a taut string from a circle. That odd-sounding curve solves a very practical problem: gears must transmit motion smoothly even when real shafts, bearings, housings, and assembly tolerances are not perfect.

An involute tooth lets two gears roll together with an almost constant speed ratio. If the center distance is slightly larger or smaller than the drawing intended, the gears may become noisier or carry load differently, but the basic ratio does not suddenly change. That tolerance to small errors is why involute gears dominate ordinary machinery, from workshop reducers to vehicle transmissions and industrial drives.

The plain-language idea

Imagine wrapping a string around a round drum, pulling it tight, and then unwinding it while keeping the string straight. A point on the string traces a curve. That curve is the involute of the drum circle, and the drum circle is called the base circle. In a gear, the active flank of the tooth is shaped as part of that curve. When two teeth touch, the contact force acts along a straight path called the line of action.

The important part is not the artistic curve. The important part is that the line of action stays at a fixed angle while the teeth pass through mesh. That angle is the pressure angle, commonly 20 degrees in many metric and inch gear systems. Because the line of action stays fixed, the common normal at the contact point always passes through the same pitch point between the gear centers. That is the geometric reason the angular speed ratio stays constant.

Figure 1: In an involute gear mesh, the tooth contact moves along a steady line of action instead of wandering unpredictably across the flank.

Why ordinary circular arcs are not enough

A beginner might ask why gear teeth are not just made from circular arcs. Circular arcs can mesh in special cases, and some older tooth systems used other curves. The problem is that the speed ratio becomes sensitive to exact geometry. If the centers move apart slightly, the contact point and the normal direction can shift in a way that changes the instantaneous ratio. The result is vibration, speed ripple, extra noise, and local overload.

Involute gears are forgiving because they keep the action line straight and tangent to both base circles. A small center-distance error changes the operating pressure angle and backlash, but the conjugate action remains. Conjugate action means one gear drives the other with the intended angular relationship through the mesh. For real manufacturing, that is a huge advantage. No gearbox has mathematically perfect center distance, bearing stiffness, tooth spacing, and thermal state at every moment.

The governing geometry

For two external gears, the velocity ratio is set by tooth counts:

i = Z_2 / Z_1 = N_1 / N_2

Here Z is tooth count and N is speed. The involute shape does not change that simple ratio. It makes the ratio happen smoothly. The pitch circles are imaginary circles that roll together without slip in the ideal model. The base circles sit inside the pitch circles and are related through the pressure angle:

r_b = r_p cos(phi)

where r_b is base-circle radius, r_p is pitch radius, and phi is the pressure angle. With a 20 degree pressure angle, the base circle is about cos(20 deg) = 0.94 times the pitch radius. The active involute flank begins near that base circle and rises outward toward the addendum circle.

The contact force between teeth can be split into tangential and radial components. The tangential component transmits torque. The radial component pushes the gears apart and loads the bearings. For a transmitted tangential force F_t and pressure angle phi:

F_r = F_t tan(phi)

So the tooth form is not only about motion. It also affects shaft and bearing loading. A larger pressure angle can make teeth stronger near the root, but it also increases separating force. Gear design is always a compromise between geometry, strength, noise, package size, and manufacturability.

Worked example 1: base circle and bearing separating force

A 24-tooth spur pinion has module m = 3 mm and a standard pressure angle of 20 deg. It transmits a tangential tooth load of 900 N. Estimate its pitch radius, base-circle radius, and radial separating force.

The pitch diameter of a metric gear is:

d = mZ = 3 x 24 = 72 mm

So the pitch radius is:

r_p = 72 / 2 = 36 mm

The base-circle radius is:

r_b = r_p cos(20 deg) = 36 x 0.9397 = 33.8 mm

The radial component of tooth force is:

F_r = 900 tan(20 deg) = 900 x 0.364 = 328 N

That 328 N does not help transmit torque. It pushes the gears apart and must be carried by the shafts, bearings, and housing. The calculation shows why an involute gear article cannot stop at the pretty tooth curve. The same geometry that gives smooth action also creates real support loads.

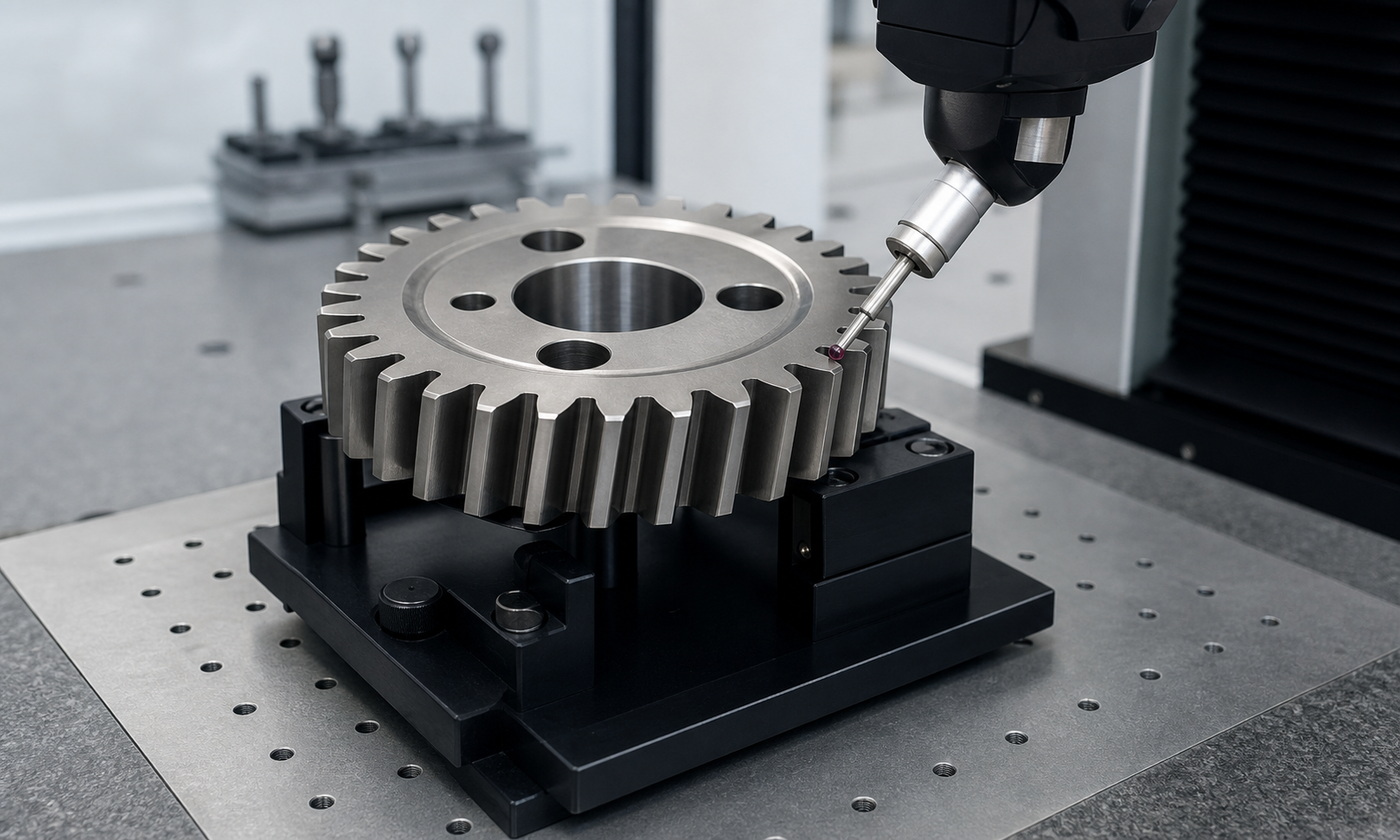

Figure 2: Gear inspection focuses on whether the real tooth flank follows the intended involute well enough for smooth load sharing.

Worked example 2: center-distance change and backlash judgment

A pair of standard spur gears has Z_1 = 20, Z_2 = 60, and module m = 2.5 mm. The theoretical center distance is:

a = m(Z_1 + Z_2) / 2 = 2.5(20 + 60) / 2 = 100 mm

During assembly, the measured center distance is 100.15 mm. The gears are therefore 0.15 mm farther apart than nominal. What should the engineer worry about?

The ratio remains:

i = 60 / 20 = 3

That is the forgiving part of involute action. The gears still run with a 3:1 ratio. But the operating pressure angle increases slightly, contact starts and ends at different points on the tooth, and backlash increases. If the gearbox is lightly loaded and not noise-critical, 0.15 mm extra center distance may be acceptable. If it is a precision servo drive or a quiet enclosed gearbox, that same error could cause rattle, impact at reversal, and poor load sharing.

The engineering decision is not simply whether the ratio still works. It is whether noise, backlash, contact pattern, bearing load, and tooth-root stress remain acceptable for the duty.

Worked example 3: why contact ratio matters

Contact ratio is the average number of tooth pairs sharing load during mesh. A contact ratio of 1.45 means one pair is always in contact, and for part of the cycle two pairs share the load. Suppose a small reducer has a peak transmitted tangential load of 1200 N. If only one tooth pair carried the entire load all the time, that pair would see 1200 N. With a contact ratio around 1.45, load sharing is not perfectly equal, but part of the cycle has two pairs engaged.

A rough design review might assume the peak load on a single pair falls to about 70% to 85% of the one-pair value during shared contact, depending on stiffness and accuracy. Taking a conservative 85% estimate:

F_pair ~= 0.85 x 1200 = 1020 N

That is still a serious load, but it is lower than a pure one-pair case. The result explains why engineers care about addendum, pressure angle, profile shift, and manufacturing accuracy. The tooth shape must give enough overlap that one tooth pair does not crash out before the next pair has properly taken load.

Figure 3: In service, the involute profile has to work with real load, lubrication, support stiffness, and tooth accuracy, not just perfect drawing geometry.

Assumptions and limits

The simple involute explanation assumes rigid gears, exact tooth spacing, adequate lubrication, and shafts that hold alignment under load. Real gears deflect. Bearings have clearance. Housings breathe under torque. Teeth have profile error, pitch error, lead error, surface roughness, and heat-treatment distortion. An involute shape gives the designer a robust starting point, but it does not rescue a weak shaft, a flexible housing, or an oil-starved mesh.

There are also limits at very small tooth counts. A pinion with too few teeth can suffer undercutting, where the generating tool removes material near the tooth root and weakens the tooth. Profile shift, larger pressure angle, helical teeth, or a different tooth count may be used to avoid that problem. In high-speed gears, noise and dynamic load can dominate the design. In heavily loaded gears, pitting, scuffing, bending fatigue, and lubrication film thickness become just as important as kinematics.

Common failure modes

• Tooth pitting: small surface craters form when contact stress and lubrication conditions exceed what the flank can tolerate.
• Root bending fatigue: cracks start near the tooth root when repeated load cycles are too high for the geometry and material.
• Scuffing: local welding and tearing occur when sliding, temperature, and lubrication failure break down the protective film.
• Noise and rattle: excessive backlash, poor profile accuracy, or low contact ratio lets teeth impact instead of carrying load smoothly.
• Edge loading: shaft misalignment makes one side of the face width carry too much load, even if the involute profile is correct in section.

Practical rules of thumb

• Do not judge a gear only by tooth count. Check module or diametral pitch, pressure angle, face width, material, heat treatment, and lubrication.
• A 20 degree pressure angle is common, but that does not mean it is automatically best for every gearbox.
• Small pinions deserve extra attention because undercutting, root stress, and sliding are usually more severe.
• Backlash is necessary. Too little can make gears bind as temperature rises; too much can create impact, noise, and positioning error.
• Good contact pattern across the face width is often the difference between a quiet gearbox and an early failure.
• If gear noise changes after bearing replacement or housing repair, suspect center distance, alignment, or backlash before blaming the tooth form itself.

How standards treat involute gears

Gear standards do not present the involute as a casual drawing preference. They define the language, geometry, accuracy, and strength checks needed to make gears interchangeable and reviewable. ISO 21771 covers gear geometry vocabulary and symbols. ISO 53 and related standards define standard reference profiles for cylindrical gears. ISO 1328 deals with accuracy grades, including pitch, profile, and helix deviations. ISO 6336 and comparable AGMA methods are then used to evaluate bending and contact stress capacity.

The practical message is simple: the involute curve gives a gear its motion law, but standards make the gear buildable, inspectable, and strong enough for duty. A drawing that says only "involute gear" is not enough. The engineer must define tooth system, module, tooth count, pressure angle, face width, quality grade, material, heat treatment, backlash, lubrication, and rating basis.

Engineering judgment

The special curved shape of gear teeth exists because real machines need smooth motion under imperfect conditions. Involute gears tolerate small center-distance errors, can be made with standardized cutting tools, and can be checked with established inspection methods. That combination is hard to beat.

Still, involute geometry is only one part of a reliable gearbox. The final design has to carry torque without bending fatigue, avoid pitting under contact stress, maintain an oil film, keep shafts aligned, and provide enough backlash for temperature and manufacturing variation. When a gear drive fails, the tooth curve may be mathematically correct while the system around it is not.
