Gears: wheels with teeth that never slip

A bicycle chain climbs over sprocket teeth without losing its place. A lathe gearbox can cut the same thread pitch again and again. A crane hoist can lift slowly with confidence instead of relying on a rubber belt to grip. All of those machines depend on the same idea: if two wheels must keep an exact motion relationship, friction alone is not enough. They need teeth.

Gears are rotating machine elements with shaped teeth that mesh so one shaft drives another without ordinary rolling slip. A belt drive and a friction wheel can transmit motion only while surface grip survives. A gear pair transmits motion by positive engagement. One tooth pushes the next tooth into motion, so the speed relationship is set mainly by geometry rather than by friction coefficient.

Why plain wheels slip and gears do not

If you press two smooth wheels together, they can turn together only while friction at the contact is high enough. If torque rises, or oil gets onto the surface, or the normal force falls, one wheel starts to slide. The output speed changes immediately. That may be acceptable for a conveyor or polishing wheel, but it is unacceptable where timing and position matter.

A gear avoids that problem by replacing uncertain friction grip with matched tooth flanks. The teeth still experience some tiny local sliding as they roll through contact, but the pair does not lose overall motion ratio the way smooth wheels do. Engineers care about that distinction. The purpose of a gear is not to eliminate all sliding inside the mesh. The purpose is to prevent uncontrolled gross slip between the shafts.

That is why gears show up whenever a machine needs exact angular relationship, compact torque multiplication, or repeatable synchronization. Watches, mixers, machine tools, steering gears, pumps, reducers, and transfer cases all use the same principle even though their sizes and loads are very different.

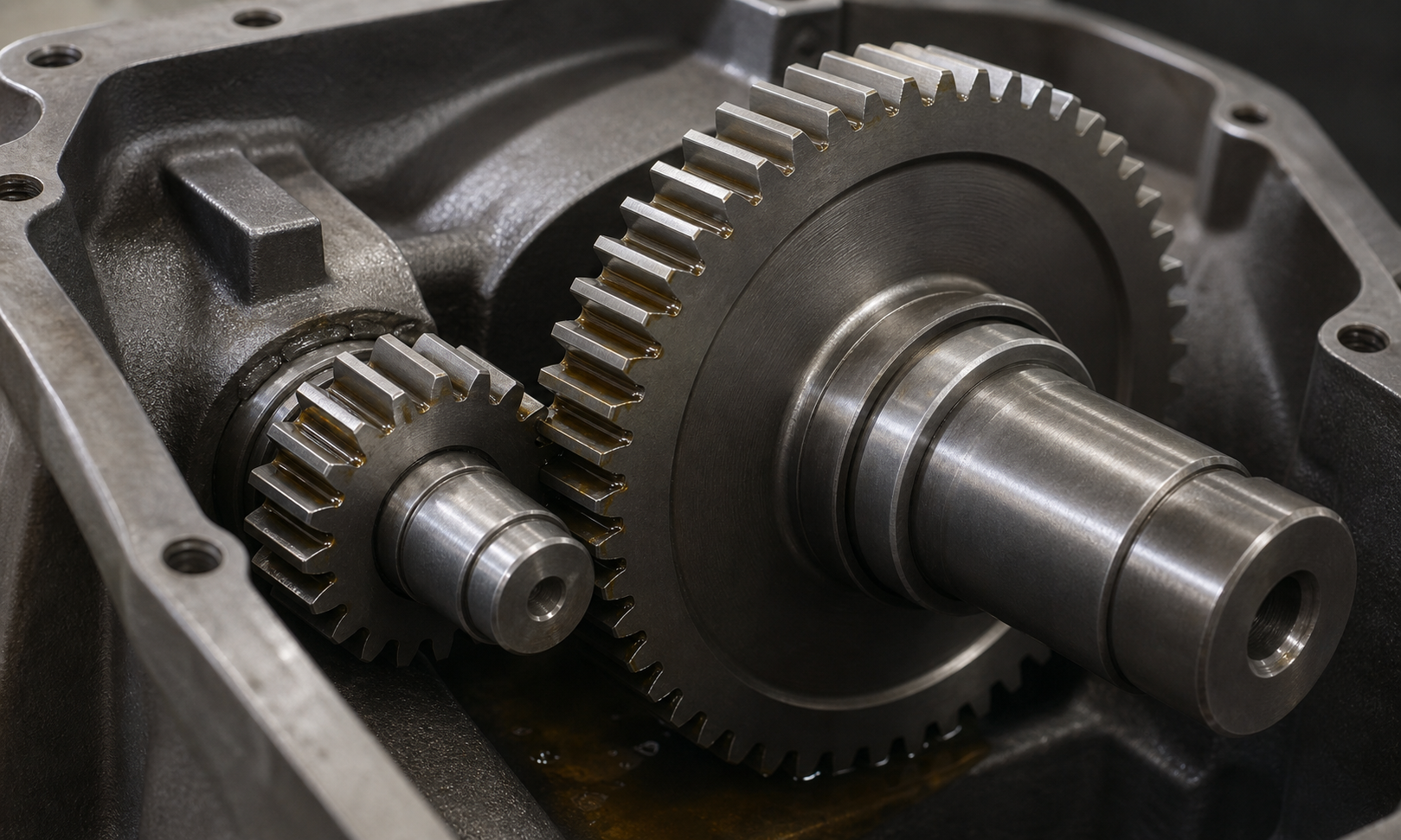

Figure 1: A gear pair keeps its motion relationship because the tooth flanks stay engaged all the way through the mesh instead of relying on friction alone.

What one gear tooth is really doing

At first glance a gear tooth looks like a little metal spike. In reality it is a carefully shaped springy beam and rolling contact surface doing several jobs at once. It must enter mesh smoothly, carry a changing force, survive repeated bending at the tooth root, share load with nearby teeth, and leave mesh without impact. If that shape is poor, the gear becomes noisy, weak, hot, and short-lived.

Three beginner terms matter immediately. The pitch circle is the imaginary circle that represents the effective rolling size of the gear. The module is a metric size measure equal to pitch diameter divided by tooth count. The pressure angle describes the direction in which the tooth force acts. For many modern industrial gears, a 20 degree pressure angle is common because it gives a practical balance between tooth strength and smooth meshing.

The tooth shape on most power-transmission gears is an involute profile. That word sounds advanced, but the practical advantage is simple: even if the center distance changes a little because of manufacturing tolerance or shaft deflection, the involute shape still preserves a nearly constant speed ratio. Engineers like anything that stays predictable when the real machine is not perfectly rigid.

The governing physics in plain language

Gears trade speed and torque through lever-arm geometry. If a small gear called the pinion drives a larger gear, the larger gear turns more slowly but with more torque. The teeth do not create extra power. They reshape how the same power appears.

The key relations are short:

gear ratio i = Z_gear / Z_pinion

N_gear = N_pinion x Z_pinion / Z_gear

T = P x 60 / (2 x pi x N)

F_t = 2T / d

Here Z is tooth count, N is rotational speed in rpm, T is torque in N.m, P is power in watts, F_t is tangential tooth force, and d is pitch diameter in meters. The first two equations describe the motion relationship. The last two connect power flow to the actual force acting on the teeth.

Those formulas lead to an important engineering instinct: a gear tooth is not loaded because it merely exists inside a gearbox. It is loaded because torque must cross the pitch circle. If torque doubles, the tooth force roughly doubles. If pitch diameter gets larger for the same torque, tooth force falls because the lever arm is longer.

Gears do not magically make machines stronger. They simply let a designer exchange speed for torque in a controlled, repeatable way.

Worked example 1: a reducer that slows the shaft and boosts torque

A mixer is driven by an electric motor delivering 3.2 kW at 1440 rpm. The motor pinion has 18 teeth and drives a gear with 54 teeth. Assume gearbox efficiency is 96%. Find the output speed and the approximate output torque.

First calculate the gear ratio:

i = Z_gear / Z_pinion = 54 / 18 = 3

So the output speed is one-third of the motor speed:

N_out = 1440 x 18 / 54 = 480 rpm

Now find input torque from motor power:

T_in = P x 60 / (2 x pi x N)

T_in = 3200 x 60 / (2 x pi x 1440) = 21.2 N.m

With a 3:1 reduction, ideal output torque would be:

T_out,ideal = 21.2 x 3 = 63.6 N.m

Accounting for 96% efficiency:

T_out = 0.96 x 63.6 = 61.1 N.m

The result makes physical sense. The gearbox did not create extra power. It reduced speed from 1440 rpm to 480 rpm and turned that reduction into a higher usable torque of about 61 N.m. That is exactly why a mixer, hoist, or conveyor reducer uses gears instead of trying to make the motor shaft do everything directly.

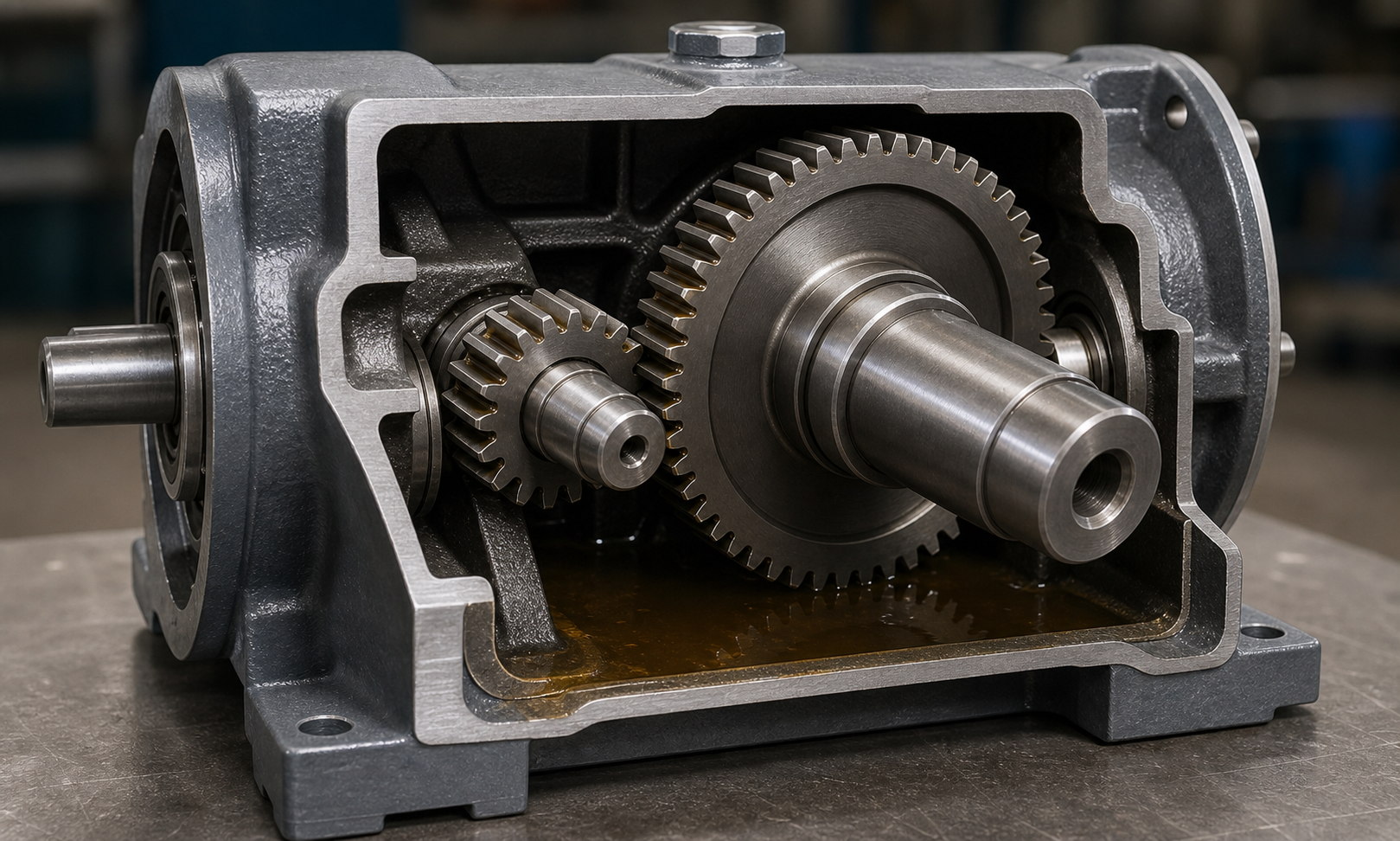

Figure 2: A reducer uses a small pinion and larger gear to lower speed and raise torque while keeping the motion ratio exact.

Worked example 2: turning power flow into actual tooth force

A pinion in a small machine tool head transmits 2.2 kW at 900 rpm. It has 20 teeth, module 3 mm, and meshes with a 60-tooth gear. Estimate the pinion pitch diameter, the center distance, pitch-line velocity, and the tangential force acting at the teeth.

For a metric spur gear, pitch diameter is:

d_pinion = m x Z = 3 mm x 20 = 60 mm = 0.060 m

d_gear = 3 mm x 60 = 180 mm = 0.180 m

The center distance is half the sum of the pitch diameters:

a = (60 + 180) / 2 = 120 mm

Now calculate pitch-line velocity of the pinion:

v = pi d N / 60 = pi x 0.060 x 900 / 60 = 2.83 m/s

From power and velocity, the tangential tooth force is:

F_t = P / v = 2200 / 2.83 = 777 N

You can check the same answer through torque. Pinion torque is:

T = 2200 x 60 / (2 x pi x 900) = 23.3 N.m

F_t = 2T / d = 2 x 23.3 / 0.060 = 777 N

This second method matches the first, which is a good habit whenever numbers matter. The gear designer now has a physical feel for the load: the teeth are not carrying some abstract "2.2 kW." They are passing about 777 N of tangential force around a 60 mm pitch circle. That force then becomes the starting point for bending-stress, surface-stress, shaft, bearing, and housing checks.

Why gears are efficient but still need lubrication

People sometimes say gears do not slip, so they imagine the mesh is almost loss-free. The truth is more subtle. Even though the pair keeps a fixed motion ratio, the contacting tooth flanks still experience rolling plus local sliding as the contact point moves from one side of the pitch point to the other. That sliding produces friction heat. The teeth also squeeze lubricant under high contact stress, and the oil or grease must prevent scuffing and wear.

That is why a gearbox with excellent tooth geometry can still fail early if lubrication is wrong. Too little oil, too much contamination, poor alignment, or excessive temperature can damage the flanks long before the designer runs out of theoretical strength. Gear design is therefore never only about tooth shape. It is about tooth shape, material, heat treatment, surface finish, lubrication, and support stiffness together.

Assumptions behind simple gear calculations

The basic equations above assume the teeth are cut correctly, the shafts are aligned, the housing is stiff enough, and the load is reasonably steady. Real machines often violate those assumptions. A motor may start under shock. A gearbox casing may twist. A long shaft may deflect enough to push one side of the face width into heavier contact. Backlash may be too tight when the machine heats up. Any of those conditions can turn a quiet mesh into a noisy or overloaded one.

Simple calculations also hide the fact that more than one tooth pair often shares the load during meshing. That load sharing improves smoothness, but it is sensitive to tooth accuracy and deflection. In a badly made or badly aligned gear pair, one corner of one tooth may carry far more than the neat textbook average suggests.

Common failure modes and what they look like

• Tooth-root bending fracture: the tooth acts like a cantilever beam and cracks near its root after repeated overload or fatigue cycling.
• Pitting: tiny surface fatigue craters appear on the flanks because contact stress has been too high for too long.
• Scuffing or scoring: lubrication fails and the sliding parts of the mesh wipe or smear the tooth surface.
• Wear: abrasive particles or poor lubrication slowly remove material and change the tooth profile.
• Chipping from impact: sudden reversal, poor engagement, or debris in the mesh breaks the edge of a tooth.
• Noise from misalignment or poor accuracy: the gear may survive structurally for a while, but the contact pattern and vibration tell you the geometry is wrong.

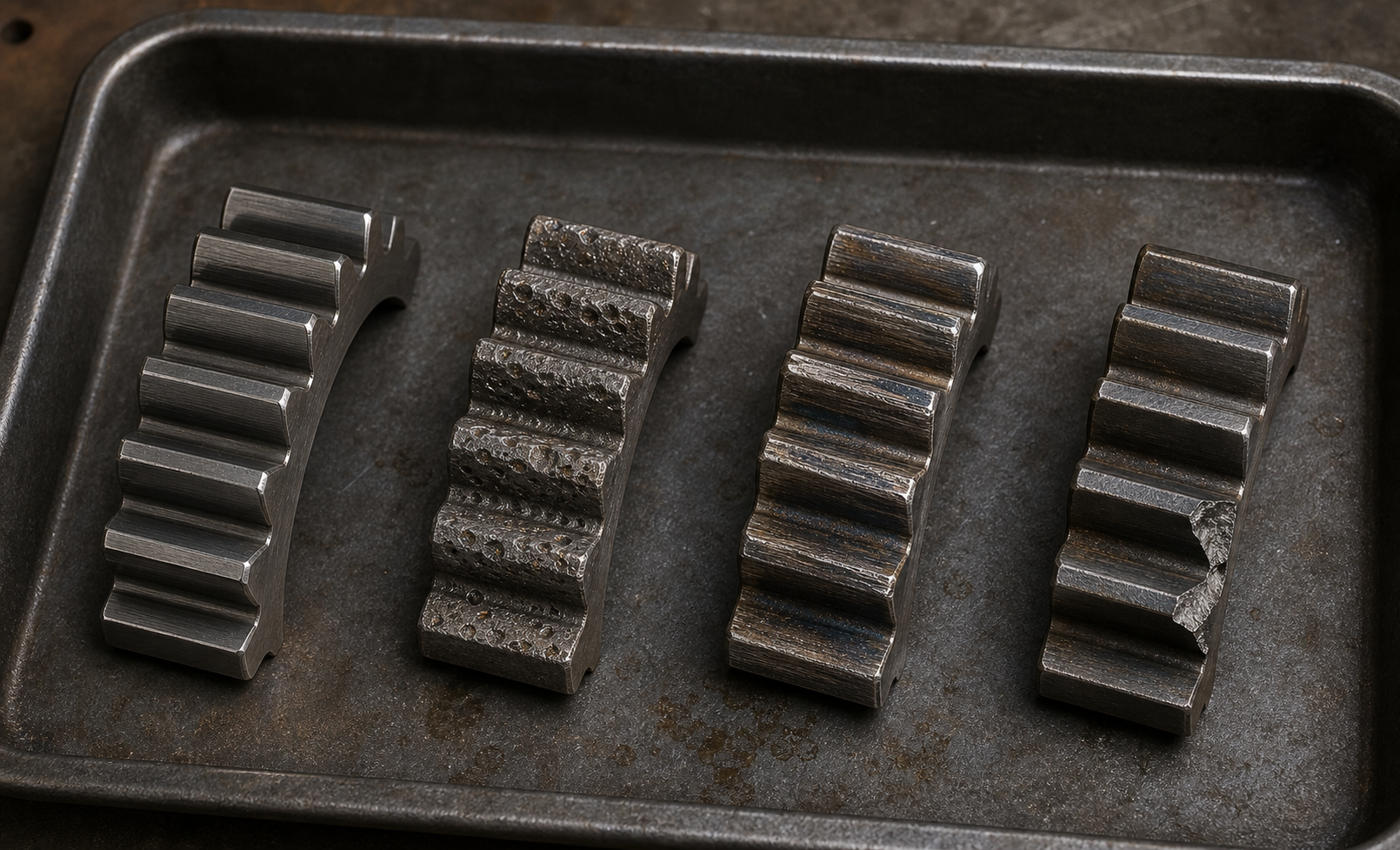

Figure 3: Gear failures leave visible clues such as pitting, scoring, edge chipping, and contact patterns that are no longer even across the tooth face.

Practical rules of thumb for beginners

• If you need exact speed relationship, choose gears over friction wheels or plain belts.
• The smaller gear usually sees the higher number of load cycles, so pinions often need special attention in strength and wear checks.
• Many ordinary spur gear designs begin with face width somewhere around 8m to 12m, where m is module, then refine from real load and deflection checks.
• Use spur gears for simplicity and efficiency when noise is acceptable; use helical gears when smoother and quieter running matters more than axial-thrust simplicity.
• Do not trust strength calculations if shaft, bearing, and housing stiffness are clearly weak. A strong tooth on a bending shaft is still part of a weak system.
• When pitch-line velocity, load, or duty rises, lubrication quality stops being a maintenance detail and becomes a design requirement.

How standards treat gears

Standards do not tell an engineer to "make the teeth strong." They separate the problem into measurable pieces. ISO 6336 and comparable AGMA methods are widely used to check tooth-root bending stress and contact stress. ISO 1328 organizes gear accuracy grades so profile error, pitch error, and runout can be discussed consistently. Basic dimensional systems also standardize module, tooth proportions, and pressure angles so cutters, drawings, inspection, and replacement parts all speak the same language.

In practice, standards push designers toward disciplined thinking. They make you ask: what load spectrum is real, what quality grade is needed, what hardness level is available, what lubrication method is planned, and what reliability target matters? A gear that looks fine on paper can still be a poor design if those questions were skipped.

Engineering judgment: gears are precision force transmitters

The beginner mistake is to see a gear as just a toothed wheel. The better view is to see it as a precision force transmitter. It sets timing, controls torque flow, and demands support from shafts, bearings, housing, and lubricant. When any one of those supporting pieces is careless, the gear pair becomes noisy, hot, or fragile even if the tooth count ratio looked correct.

If you remember one thing, remember this: gears are called wheels with teeth, but their real value is not the wheel shape. Their value is the reliable, repeatable engagement that lets one shaft tell another shaft exactly how fast to turn. For related machine elements, read Shafts: the spinning backbone of every machine or continue through the EnggTools articles library.
