Spur vs helical gears: why helical gears are quieter

If you have ever heard a cheap gearbox whine while a car transmission hums more smoothly, you have already met the difference between spur gears and helical gears. Both transmit torque with teeth instead of friction, both can hold an accurate speed ratio, and both appear in ordinary machines. But helical gears usually sound smoother because the teeth do not crash into full-face contact all at once.

A spur gear has teeth that run straight across the face width, parallel to the shaft axis. A helical gear has teeth cut at an angle called the helix angle. That small-looking tilt changes how contact starts, how load is shared, how much vibration is excited, and what the bearings have to carry. The quieter running of helical gears is real, but it is not free. The price is extra sliding, more manufacturing effort, and an axial thrust load that tries to push the gear along the shaft.

The plain-language picture

Imagine pushing two stacks of cards together. If the edges are square, the whole edge meets almost instantly. That impact is abrupt. Now imagine the edge is slanted. Contact begins at one corner and sweeps across gradually. The final force may be similar, but the force builds more gently. That is close to what happens in a helical gear mesh.

In a spur gear, one tooth pair can enter mesh across nearly the full face width at once. In a helical gear, contact begins near one end of the tooth and travels diagonally across the face as the gears rotate. That progressive entry lowers the suddenness of tooth engagement. Less sudden engagement means lower vibration excitation, and lower vibration usually means less noise.

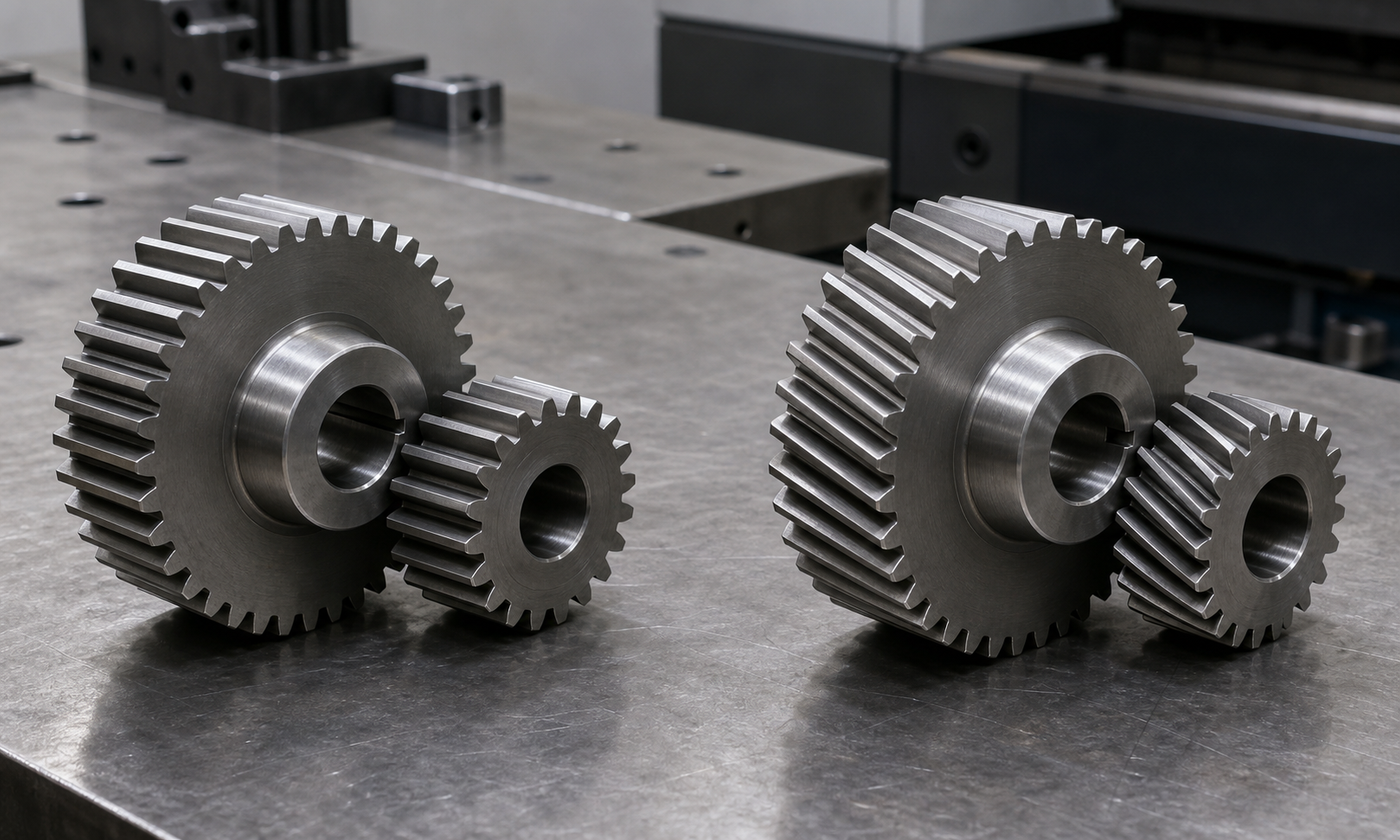

Figure 1: The straight tooth line of a spur gear and the angled tooth line of a helical gear may look like a small geometric change, but that tilt changes how load enters the mesh.

What actually changes when the teeth are angled

The fundamental speed ratio still comes from tooth count. If a 20-tooth pinion drives a 60-tooth gear, the ratio is still 3:1 whether the teeth are spur or helical. So helical gears are not quieter because they change the basic ratio. They are quieter because they change the way the teeth meet while maintaining that ratio.

Three ideas matter most.

1. Gradual entry: helical teeth come into contact progressively from one side of the face width to the other, instead of hitting with a nearly full-width line contact immediately.

2. Higher contact ratio: more than one tooth pair is often sharing the load for a larger fraction of the mesh cycle. That reduces the load jump carried by each individual pair.

3. Axial force: because the tooth load is inclined, part of the force points along the shaft axis. That axial component must be reacted by the bearings and housing.

The first two effects help noise and smoothness. The third effect is the main tradeoff.

The governing mechanics

The transmitted tangential force at the pitch circle is still the force that carries torque:

T = F_t r

where T is torque, F_t is tangential tooth load, and r is pitch radius. For a helical gear, that same tooth load is applied along an inclined tooth trace, so it creates extra force components.

For a beginner-level estimate using transverse quantities, the axial force is often taken as:

F_a ~= F_t tan(beta)

where beta is the helix angle. If beta = 0 deg, the gear is spur and F_a = 0. As beta grows, the axial force grows too. That is why a quiet helical reducer usually needs bearings arranged to resist thrust.

The other useful estimate is overlap ratio, the extra amount of tooth sharing created by the angled face contact. A simple approximation is:

epsilon_beta ~= b tan(beta) / p_t

where b is face width and p_t is transverse circular pitch. The total contact ratio of a helical gear is roughly the ordinary transverse contact ratio plus this overlap term. Actual design standards use more exact base-pitch geometry, but this estimate is good for intuition.

If the overlap ratio is large enough, one tooth pair does not finish carrying load before the next pair has already joined in. That overlap is one reason the mesh feels less harsh. The force waveform becomes smoother instead of jumping sharply tooth by tooth.

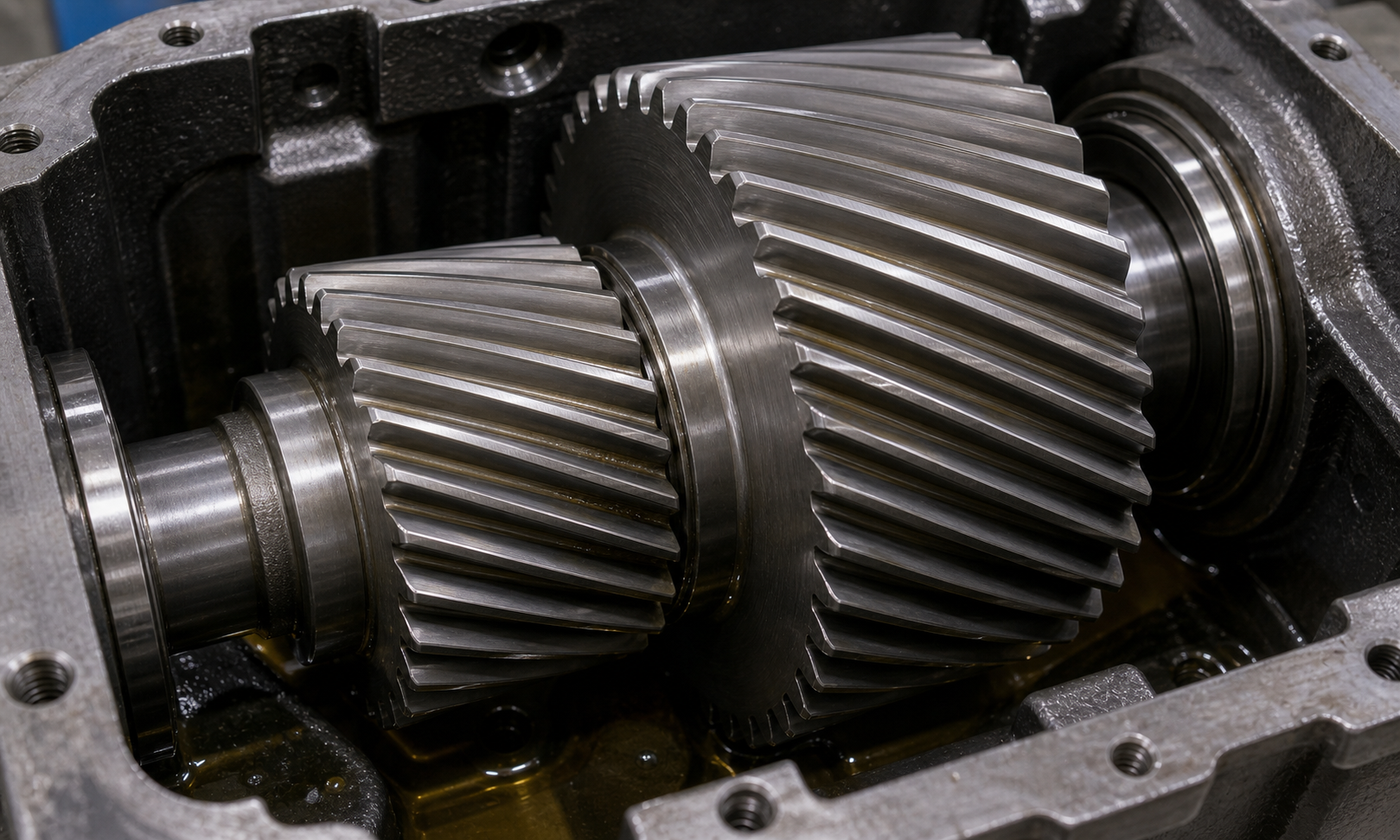

Figure 2: In a helical mesh, contact begins near one end of the face and sweeps across, which spreads the load entry over time instead of delivering one abrupt hit.

Worked example 1: estimating overlap ratio

A helical pinion has face width b = 36 mm, transverse module m_t = 3 mm, and helix angle beta = 18 deg. Estimate the overlap ratio.

The transverse circular pitch is:

p_t = pi m_t = pi x 3 = 9.42 mm

The axial overlap length created by the helix is approximately:

b tan(beta) = 36 tan(18 deg) = 36 x 0.3249 = 11.70 mm

So the overlap ratio is:

epsilon_beta ~= 11.70 / 9.42 = 1.24

That is a strong result. It means the helix angle alone contributes more than one extra tooth-pair worth of overlap on average. Suppose the same gear pair had a transverse contact ratio of about 1.35. Then a rough total would be:

epsilon_gamma ~= 1.35 + 1.24 = 2.59

In other words, the mesh often has two tooth pairs engaged and sometimes nearly three. That is why helical gears usually sound smoother under the same duty. The load does not jump from one isolated pair to the next as abruptly as in a typical spur mesh.

Worked example 2: the hidden cost in bearing load

Now take a helical pinion carrying a tangential tooth load of 2200 N with a helix angle of 20 deg. Estimate the axial thrust on the shaft.

Using the quick estimate:

F_a ~= F_t tan(beta) = 2200 tan(20 deg)

F_a ~= 2200 x 0.364 = 801 N

So the same gear tooth that quietly carries torque also pushes the shaft sideways along its axis with about 800 N of thrust. A spur gear carrying the same tangential load would produce essentially no axial thrust because its tooth line is straight.

This is why engineers cannot choose helical gears only by saying, "They are quieter." The bearings, shaft shoulders, housing stiffness, and lubrication path must be ready for that extra load. In a lightly built gearbox, the quieter tooth form can still create trouble if the thrust path is poor.

Worked example 3: quieter does not mean lower mesh frequency

A 24-tooth pinion rotates at 1450 rpm. The tooth-passing or mesh frequency is:

f_mesh = ZN / 60 = 24 x 1450 / 60 = 580 Hz

If you replace that spur pinion with a helical pinion having the same tooth count and running speed, the mesh frequency is still 580 Hz. The basic excitation frequency did not disappear. What changed is the amplitude and shape of the force entering the mesh.

That point matters in troubleshooting. Helical gears do not magically remove gear noise by changing the ratio or the tooth-passing frequency. They usually reduce noise because the force build-up is smoother, the load sharing is better, and the impact at entry is lower. If a helical gearbox is still loud, the culprit may be lead error, housing resonance, poor alignment, or bad bearings rather than the simple fact that the teeth are helical.

Why spur gears still exist everywhere

If helical gears are smoother, why not use them in every machine? Because engineering is tradeoff work, not beauty-contest work.

Spur gears are easier to manufacture, easier to inspect, easier to assemble, and easier to support with bearings. Their efficiency can be very good because sliding is lower than in an equivalent helical pair. They are often the sensible choice for low-speed drives, simple gear trains, clocks, indexing mechanisms, exposed industrial drives, low-cost reducers, and applications where some noise is acceptable but thrust load is not.

Helical gears start to earn their place when the machine needs higher speed, better smoothness, higher load capacity in a compact space, or better refinement. Automotive transmissions, enclosed industrial reducers, compressors, and many machine tools use helical gears because the smoother mesh matters to durability and acoustic quality.

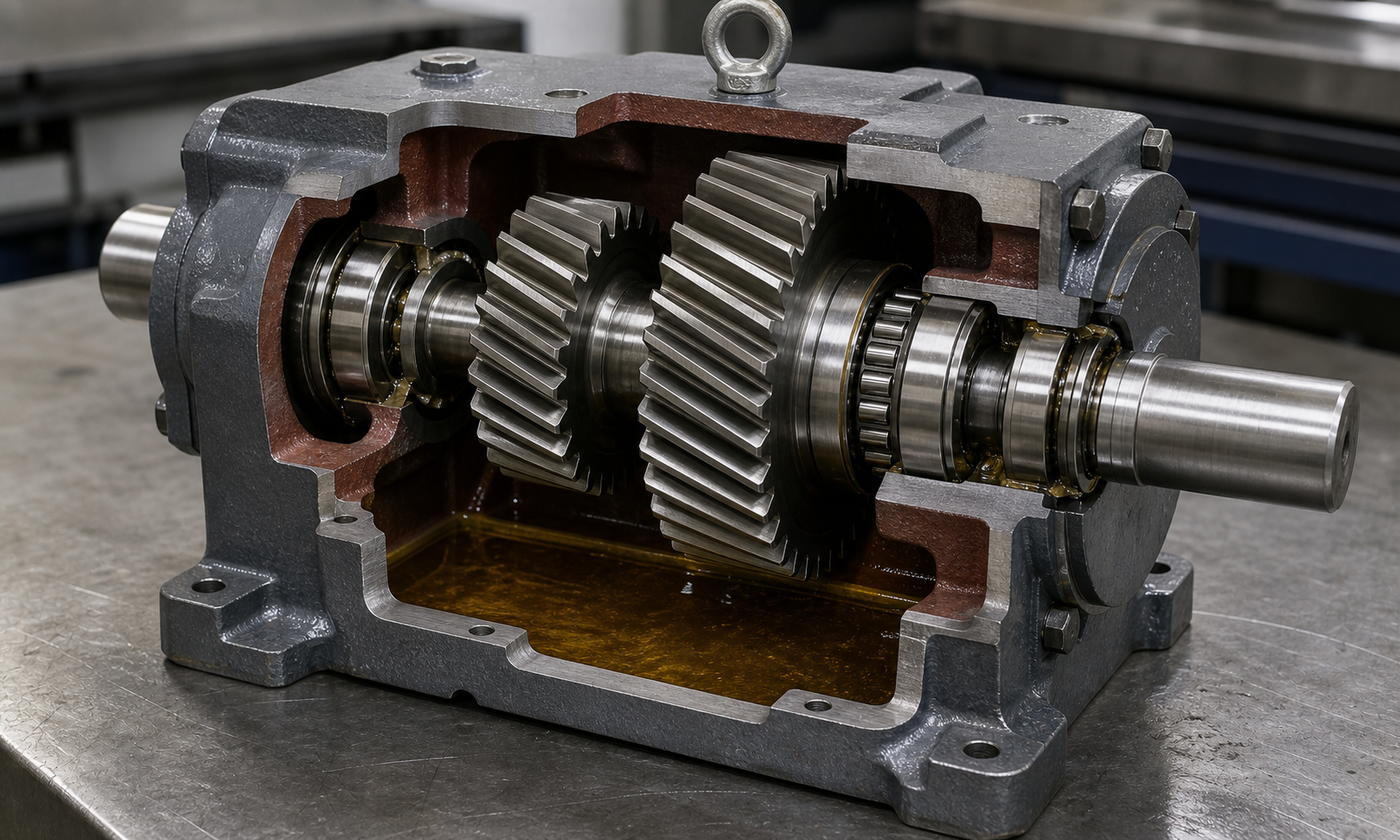

Figure 3: The quieter running of a helical gear set depends on the surrounding system too: shaft support, thrust-capable bearings, housing stiffness, and lubrication all have to cooperate.

Assumptions and limits

The clean explanation above assumes the gears are accurately cut, properly aligned, adequately lubricated, and mounted in a housing stiff enough to hold the intended geometry. Real machines are never that perfect. A poorly made helical gear can be noisier than a well-made spur gear. If lead accuracy is poor, one end of the tooth can carry more load than the other. If shaft deflection is high, the intended overlap may not be shared evenly. If oil supply is weak, the extra sliding in a helical mesh can turn into heat and scuffing.

Helix angle is also a balancing act. A larger helix angle usually improves overlap and smoothness, but it also increases axial thrust. Designers often stay in a moderate range because very large helix angles create bearing and efficiency penalties that are not worth the acoustic gain.

There is also a practical limit when the gearbox needs zero or near-zero end thrust. In such cases, a spur gear or a double helical arrangement may make more sense. Double helical gears place opposite helix hands together so the thrust from one half can cancel the thrust from the other. That solution improves smoothness but increases manufacturing complexity.

Common failure modes and how they show up

• Pitting: small craters appear on the tooth flank when repeated contact stress exceeds what the surface and oil film can support.
• Scuffing: heavy sliding plus poor lubrication tears the surface and leaves smeared or welded-looking damage, especially in high-speed helical meshes.
• Tooth-root bending fatigue: repeated tooth load starts a crack at the root fillet and the tooth eventually snaps.
• Edge loading: misalignment or lead error makes one end of the tooth face carry too much load; noise rises and wear becomes uneven.
• Thrust-bearing overload: the helical mesh is quiet at first, but the bearings heat up or wear early because the axial force path was underestimated.
• Rattle and whine: too much backlash, pitch error, or housing resonance makes either gear type noisy, even if the tooth form is theoretically correct.

Practical rules of thumb

• If the machine is high-speed or customer-facing, ask about noise early. Changing from spur to helical late in the project can force a redesign of bearings and housing.
• Do not judge a helical gear only by its quieter sound. Check the thrust path through shaft shoulders, bearings, casing, and lubricant circulation.
• A modest helix angle often gives most of the smoothness benefit without creating extreme thrust.
• Good lead accuracy matters more in helical gears because load is supposed to sweep evenly across the face width.
• If efficiency, low cost, and simple bearing layout matter more than sound quality, spur gears remain a strong option.
• If the gearbox gets quieter when unloaded but noisy under torque, look for contact pattern, alignment, housing deflection, and bearing preload issues rather than assuming the tooth type alone is wrong.

How standards treat the difference

Standards do not treat spur and helical gears as just two artistic tooth styles. They define geometry, accuracy, and rating methods so the designer can compare options rigorously. ISO 21771 gives the common geometry language for cylindrical gears. ISO 1328 covers accuracy grades, including profile, pitch, and helix deviations. ISO 6336 and comparable AGMA rating methods are then used to assess bending stress, surface durability, and load capacity.

That standards perspective matches practical design. A helical gear may promise quieter running, but the final decision still has to survive an accuracy grade, a contact pattern check, a bending review, a surface durability review, and a bearing-thrust review. Noise refinement is one requirement, not the only requirement.

Engineering judgment

Helical gears are usually quieter because the teeth enter mesh gradually and because more of the load can be shared across overlapping tooth pairs. The mesh frequency is still there, but the force waveform is less abrupt. That is the heart of the noise advantage.

The catch is that helical gears ask more from the system around them. They generate axial thrust, tolerate poor alignment less gracefully than beginners expect, and cost more to cut and inspect. Spur gears are not outdated. They are often the correct answer when simplicity, cost, efficiency, and easy bearing layout outweigh refinement.

If you are choosing between them, do not ask only which gear is quieter. Ask what the machine needs: allowable noise, shaft speed, torque density, bearing arrangement, lubrication quality, and manufacturing budget. That is the engineering question that decides whether spur or helical is the better gear.
