Brakes: turning motion into heat on purpose

A bicycle coming down a hill, a car approaching a traffic light, and a conveyor stopping exactly at a carton sensor all need the same machine element: a device that takes useful motion and kills it in a controlled way. A brake is the part that does that job. Unlike an engine or motor, which turns stored energy into motion, a brake mostly does the reverse. It turns motion into heat on purpose.

That sounds wasteful, and in one sense it is. But it is also necessary. Machines are only useful when they can slow down as deliberately as they speed up. Good braking is therefore not about "making friction." It is about predicting how much energy has to be removed, how quickly it must be removed, how much torque must reach the rotating part, and whether the brake can survive the heat without fading, cracking, or dragging.

The plain-language picture

Imagine pushing a spinning bicycle wheel against your palm. If you press lightly, the wheel only slows a little. If you press harder, it slows faster, and the skin on your palm warms up. That warming is the key beginner insight. A brake is not destroying energy; it is converting the wheel's kinetic energy into thermal energy through friction or, in some systems, electromagnetic effects.

Most everyday brakes are friction brakes. A pad presses on a disc, a shoe presses on a drum, or a spring-applied friction pack grips a rotating member. The brake force acts at a radius from the shaft center, so it creates a resisting torque. If that resisting torque is large enough for long enough, the rotating system loses speed and eventually stops. The clever part of design is making that happen smoothly and repeatedly instead of violently or unpredictably.

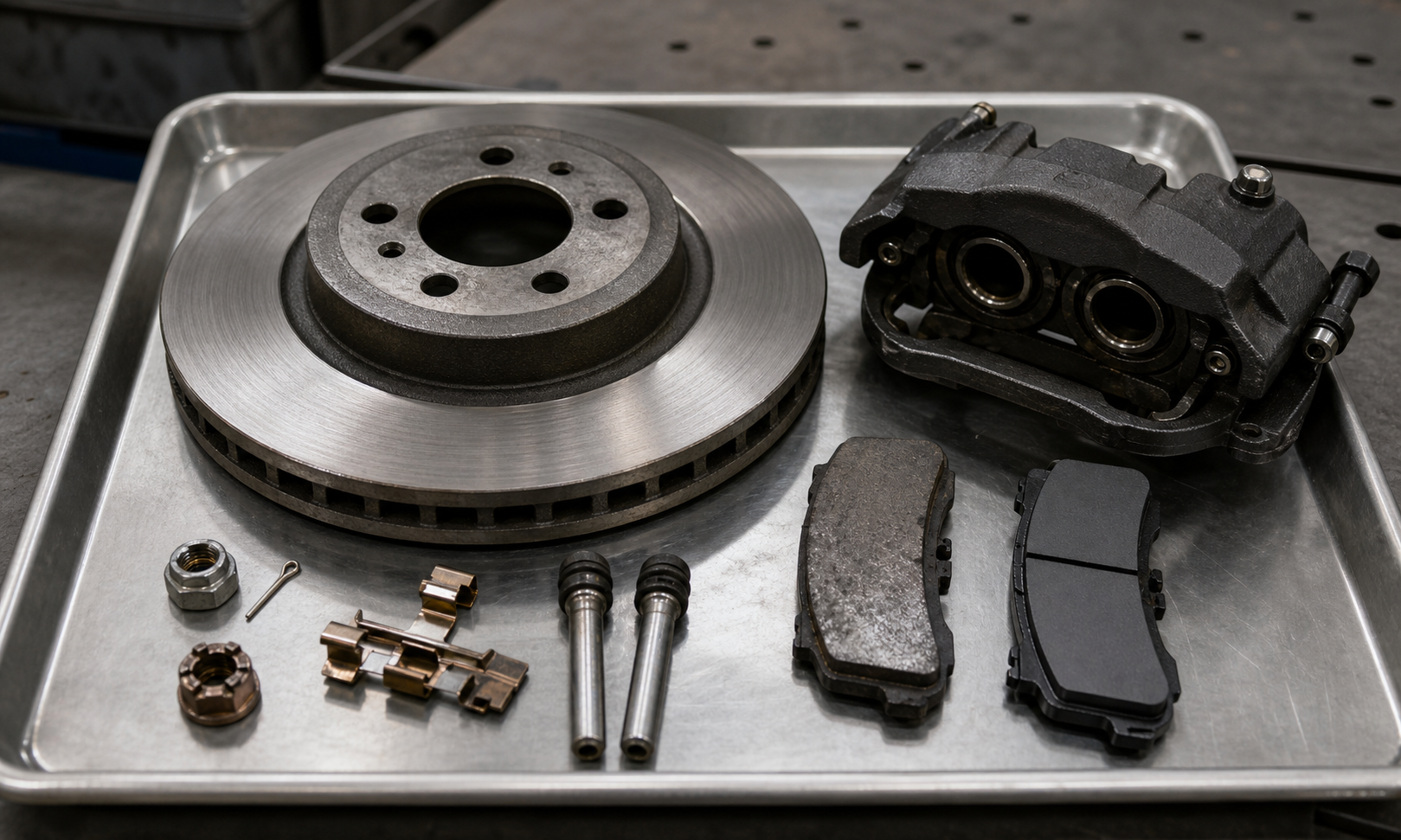

Figure 1: A disc-brake assembly looks simple on the bench, but the brake only works well when rotor mass, pad material, clamp force, sliding hardware, and heat flow all suit the duty cycle.

What a brake really has to do

A useful brake must do more than stop motion once. It must develop enough braking torque, absorb the required energy, remain stable as temperature rises, release cleanly after the stop, and repeat that performance as wear accumulates. In vehicle service, it must also feel predictable to the driver. In machinery service, it may need to hold position safely after motion stops, which is why some industrial brakes are designed as both stopping brakes and holding brakes.

The brake designer therefore watches several linked quantities at the same time: stopping energy, deceleration force, torque at the rotating member, surface pressure, temperature rise, and friction coefficient drift. A brake that can hold a load statically may still fail badly in repeated dynamic stops because its thermal capacity is too small. That is one of the most common beginner mistakes: checking force and forgetting heat.

The governing physics

The first physics quantity is the motion energy that has to be removed. For a translating mass, the kinetic energy is:

E = 0.5 x m x v^2

where E is energy in J, m is mass in kg, and v is speed in m/s. If rotating parts such as wheels, flywheels, gears, or drums matter, their rotational energy must be added too. For a rotating body:

E_rot = 0.5 x J x omega^2

where J is mass moment of inertia in kg.m^2 and omega is angular speed in rad/s.

To slow a moving machine, the brake must create a retarding force. Newton's law gives:

F = m x a

where a is deceleration in m/s^2. If that force acts at a wheel or drum radius r, the required brake torque is approximately:

T = F x r

In a friction brake, the resisting torque comes from friction force acting at an effective radius, so a simple design view is:

T = mu x W x Rm

where mu is friction coefficient, W is normal clamp force, and Rm is the mean friction radius. Real brakes use geometry factors, self-energizing effects in some drum designs, hydraulic leverage, and pad pressure limits, but this simple relation explains the heart of the problem: more clamp force, better friction, or larger radius gives more torque.

Then comes heat. During a stop, almost all of the lost kinetic energy becomes heat in the rotor, drum, pads, shoes, nearby air, and surrounding hardware. If the absorbed heat per stop is Q, a rough temperature-rise estimate for one metal part is:

Delta T = Q / (m x c)

where m is the heated mass and c is specific heat capacity. This is only a first estimate because the heat does not stay in one part and the temperature is never uniform, but it quickly tells you whether a brake is working in a comfortable zone or marching toward fade.

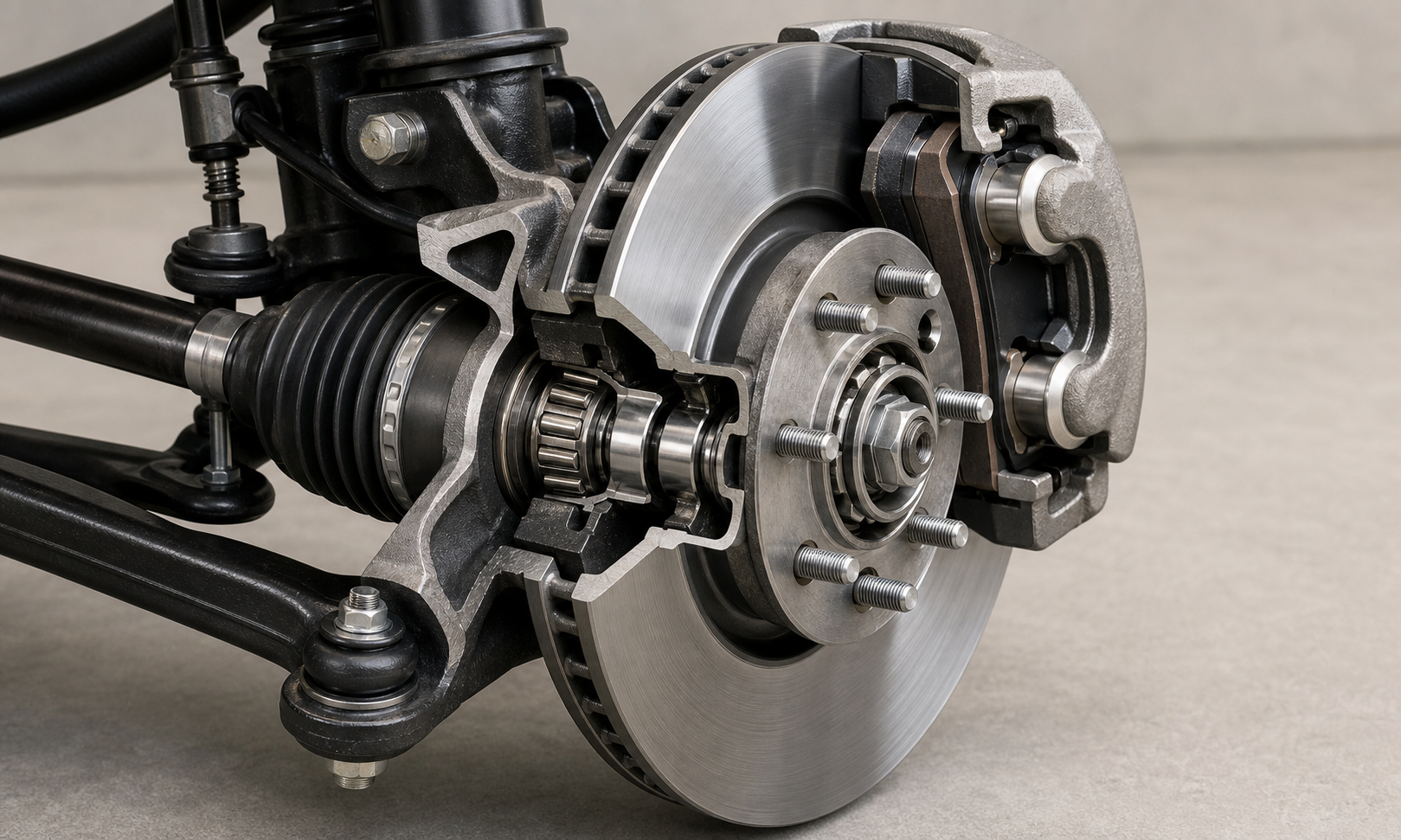

Figure 2: A disc brake is a system, not just a pad rubbing a disc. The rotor must absorb heat, the caliper must create even clamp force, the sliding parts must release cleanly, and the surrounding wheel end must tolerate the temperatures generated during braking.

Worked example 1: how much energy one stop creates

A car with total mass 1200 kg slows from 72 km/h to rest on level ground. Estimate the translational kinetic energy that the brakes must remove. Then estimate how much of that energy reaches each front rotor if the front axle handles 70% of the braking work and the two front rotors share it equally.

First convert speed:

72 km/h = 20 m/s

Now calculate vehicle kinetic energy:

E = 0.5 x 1200 x 20^2 = 240,000 J

So one stop requires the brake system to remove about 240 kJ of energy, before adding wheel and driveline rotational energy.

If the front axle takes 70% of the work:

E_front = 0.70 x 240,000 = 168,000 J

With two front rotors sharing that equally:

E_per_front_rotor = 168,000 / 2 = 84,000 J

Each front rotor therefore sees roughly 84 kJ in this one stop. That number is why brakes need thermal mass and airflow. The stopping event feels brief to the driver, but the hardware is swallowing the heat of a small electric heater running very hard for a short time.

If one front rotor has mass 7 kg and we use a rough cast-iron specific heat of 460 J/kg.K, the first-pass rotor temperature rise would be:

Delta T = 84,000 / (7 x 460) = 26.1 C

That does not mean the real rotor surface rises by only 26 C. The surface can be much hotter than the bulk, and some heat also enters the pads and air. But it shows why one moderate stop is easy while repeated hard stops can pile up temperature quickly.

Worked example 2: required wheel brake torque

A light utility vehicle of mass 1600 kg must decelerate at 4.0 m/s^2 on dry pavement. Assume the front axle provides 70% of the total braking force and the two front wheels share that force equally. If the loaded wheel radius is 0.31 m, estimate the brake torque needed at each front wheel.

Total retarding force is:

F_total = m x a = 1600 x 4.0 = 6400 N

Front-axle share:

F_front = 0.70 x 6400 = 4480 N

Per front wheel:

F_per_wheel = 4480 / 2 = 2240 N

Required wheel torque is then:

T = F x r = 2240 x 0.31 = 694.4 N.m

So each front brake must provide about 694 N.m of braking torque under this condition. In real design, the required caliper clamp load would be higher than this simple number suggests because pad friction, effective radius, tire-road grip, and hot-condition reserve all matter. Even so, the calculation gives a clear engineering scale for the hardware.

Worked example 3: braking a rotating machine

A packaging machine has a flywheel and drive train with combined inertia J = 3.2 kg.m^2 referred to the brake shaft. The shaft speed before stopping is 900 rpm. The machine must stop in 2.0 s. Estimate the rotational energy to be removed and the average braking torque if deceleration is uniform.

First convert speed to angular speed:

omega = 2 x pi x 900 / 60 = 94.2 rad/s

Rotational energy is:

E_rot = 0.5 x 3.2 x 94.2^2 = 14,190 J

So the brake must remove about 14.2 kJ.

Uniform angular deceleration is:

alpha = 94.2 / 2.0 = 47.1 rad/s^2

Average brake torque is:

T = J x alpha = 3.2 x 47.1 = 150.7 N.m

This example is smaller in energy than the vehicle case, but it teaches an important point: machinery brakes are often sized by inertia and stopping time rather than road friction. A compact industrial brake may never see a highway stop, yet it can still be severe if it must stop a high-inertia shaft every few seconds.

Disc brakes, drum brakes, and load transfer

Disc brakes are popular because the rotor is exposed to cooling air, the torque response is predictable, and the design tolerates wet conditions fairly well. Drum brakes can package a large friction area and may produce self-energizing action, which reduces actuation effort, but they trap heat more easily and can be harder to keep consistent as temperature and wear change.

In vehicles, another effect matters: load transfer. During deceleration, normal load shifts toward the front axle, so the front brakes can usually do more of the work before tire slip starts. That is why front brakes are often larger. The brake system is not only matched to the available friction material; it is matched to how the whole machine redistributes load during a stop.

Assumptions and their limits

The simple equations above assume steady friction coefficient, even pressure distribution, no tire slip, and no major change in temperature during the stop. Real brakes are less polite. Friction coefficient may fall at high temperature, rotor surfaces may develop local hot spots, hydraulic components may expand, and pad wear may change the effective contact pattern. In vehicles, the tire-road interface can become the true limit before the brake hardware reaches its theoretical torque capacity.

Thermal estimates are also easy to misuse. The equation for temperature rise assumes the absorbed energy spreads evenly through the chosen mass, but real rotors heat first at the rubbing path, then conduct inward. Short repeated stops can therefore create very hot surfaces long before the average metal temperature looks dramatic on paper.

Common failure modes and what they look like

• Brake fade: as temperature rises, friction coefficient drops and the same pedal or actuator force produces less deceleration.
• Glazing: the pad or shoe surface becomes smooth and shiny after overheating, causing grabby or weak braking.
• Thermal cracking and hot spotting: repeated severe stops create local damage, vibration, or pulsation in the rotor or drum.
• Fluid boil or actuator trouble: in hydraulic systems the pedal can become soft because vapor compresses more than liquid.
• Drag: corrosion, distorted hardware, or sticky guide motion prevents full release, so the brake runs hot all the time.
• Uneven wear: one pad, shoe, or side works harder than the other, leading to pull, noise, and shorter life.

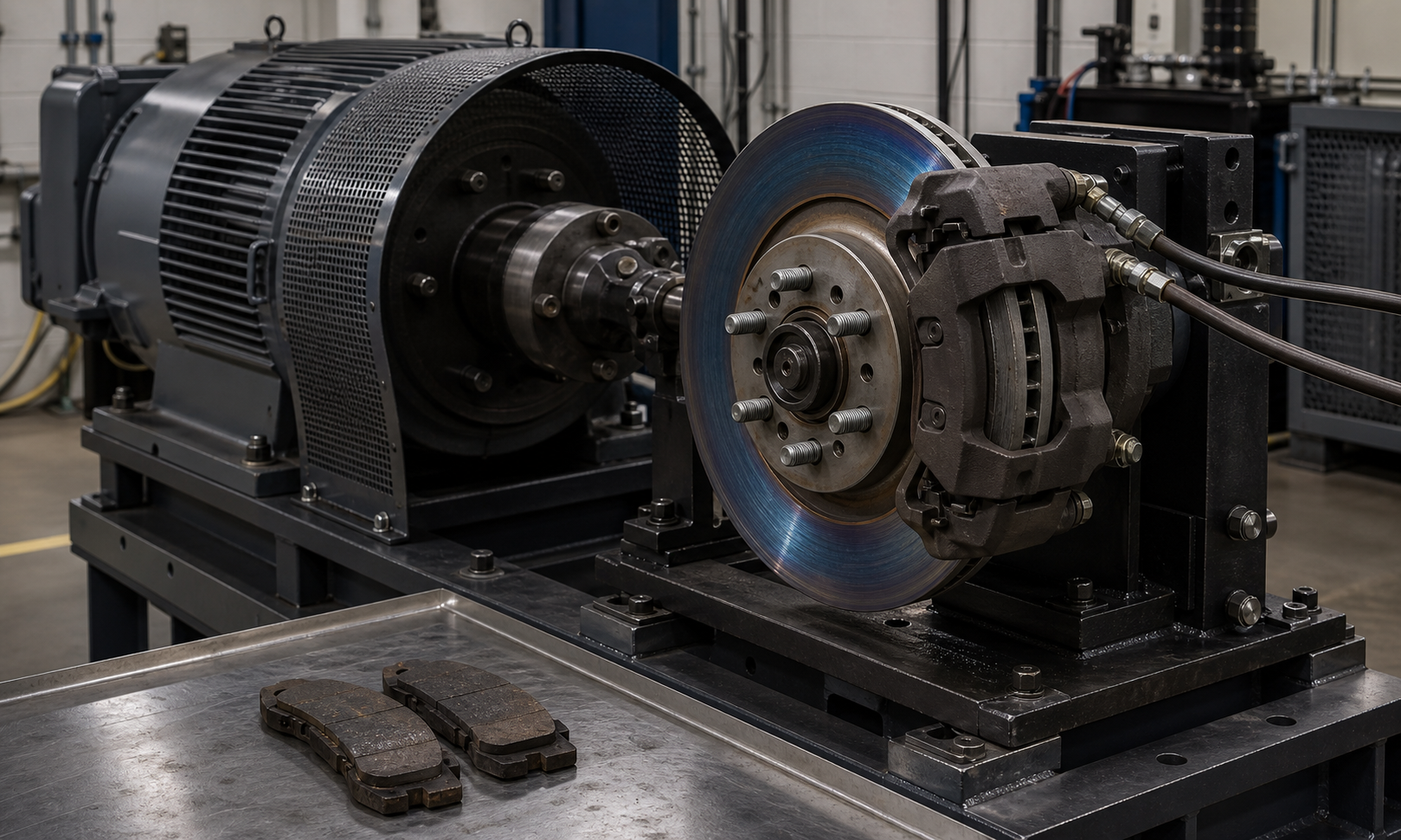

Figure 3: Brake trouble is usually a thermal story. A dynamometer setup reveals whether the brake still develops stable torque after repeated stops, when the rotor and pad surfaces are hot rather than comfortable.

Practical rules of thumb

• Always check energy per stop and stops per minute, not only peak braking torque.
• If repeated hard stops are expected, rotor or drum cooling can matter more than adding a little more clamp force.
• Front brakes in vehicles usually deserve more thermal capacity because load transfer makes them work harder.
• A brake used to hold position after stopping should be checked separately for static holding duty and dynamic stopping duty.
• If a brake runs hot with no command input, suspect drag first; constant light rubbing can destroy a brake surprisingly quickly.
• Do not judge brake condition by lining thickness alone. Surface condition, cracks, hardware freedom, and temperature history matter too.

How standards and design practice treat brakes

Standards rarely treat brakes as "just friction parts." Vehicle regulations focus on stopping distance, stability, parking-brake performance, brake balance, and safe behavior if one part of the system degrades. Industrial machinery standards often care about stopping time, fail-safe action, guarding, and whether the brake can hold a suspended or hazardous load when power is lost. Friction-material suppliers also publish temperature limits, wear data, and recommended pressure ranges that designers treat almost like application-specific standards.

The practical standards mindset is simple: verify the brake at the real duty cycle, not only at one cold stop. Engineers want to know the hot-condition torque, recovery between cycles, wear reserve, and failure behavior. That is why brake validation often includes repeated-stop tests, slope-hold checks, and inspections for cracks, fade, and release consistency.

Engineering judgment

A brake is a heat-management device disguised as a stopping device. The torque equation tells you whether the brake can bite; the energy equation tells you whether it can survive. Good design needs both. If you remember only one thing as a beginner, remember this: motion energy has to go somewhere, and in an ordinary brake it mostly goes into hot metal and hot friction material.

When you evaluate a brake concept, ask four questions in order. How much energy must one stop remove? How much torque is needed at the rotating member? How often will that stop repeat before the hardware cools? And what happens if the brake sticks, fades, or loses actuation force? Those questions usually reveal whether a brake is robust engineering or only a cold-calculation success.
