Bevel gears: turning power around a corner

Many machines need to change the direction of rotation without using a belt or a chain. A hand drill sends motor power through a right-angle attachment. A differential sends driveshaft rotation out to axle shafts. A small gearbox on a packaging machine may need one shaft pointing down and another pointing sideways. When engineers need one shaft to drive another at an angle, a common answer is the bevel gear.

A bevel gear is a gear whose teeth are cut on a cone-shaped surface instead of a cylinder. In plain language, it is the gear you use when the shaft axes intersect, most often at 90 deg. The gear teeth still transmit torque by tooth contact, but the geometry is arranged so the motion turns a corner. That idea sounds simple. The engineering around it is not. Bevel gears care about contact pattern, mounting position, bearing stiffness, and lubrication much more than beginners usually expect.

The plain-language picture

Imagine two paper cones with their tips touching. If you spin one cone while keeping the surfaces in proper contact, the second cone turns too. That is the basic kinematic picture behind bevel gears. The pitch surfaces are not cylinders rolling together like spur gears. They are pitch cones, and the cone tips meet at the point where the shaft axes would intersect.

If both gears have the same number of teeth and the shafts meet at 90 deg, the pair is often called a miter gear set. It changes direction but not speed ratio. If one gear has more teeth than the other, the pair still turns the motion through the shaft angle, but now it also changes speed and torque. So bevel gears are not only corner-turners. They can also be reducers or increasers.

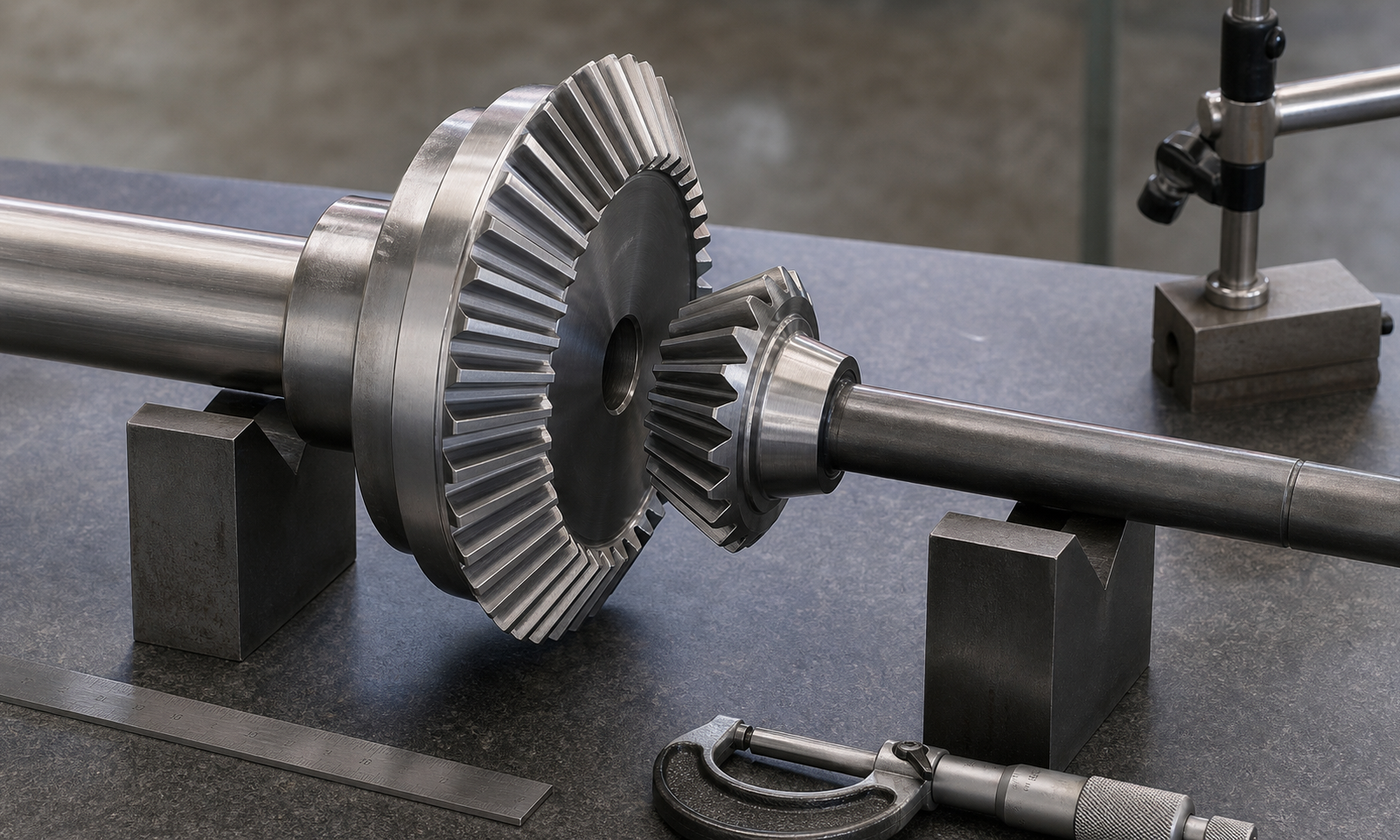

Figure 1: A bevel gear pair works because the tooth-bearing surfaces are based on cones whose tips meet at the shaft intersection, letting rotation turn through the included shaft angle.

What makes bevel gears different from ordinary spur gears

A spur gear pair usually connects parallel shafts. A bevel gear pair usually connects intersecting shafts. That one sentence changes several design consequences.

First, the tooth size changes from the large end of the gear toward the small end. The teeth are not uniform bars across a constant diameter the way spur teeth appear to be. Second, the tooth contact pattern is more sensitive to mounting position. If the gears sit too far in or too far out, the contact patch walks toward the toe or heel of the tooth and the mesh gets noisy or overloaded. Third, the tooth force does not stay in one convenient plane. A bevel mesh creates tangential, radial, and axial components, so the bearings and housing have to react the load in three dimensions.

There are also several bevel-gear families. Straight bevel gears have straight tooth traces and are simpler to visualize. Spiral bevel gears curve the tooth trace and usually run more smoothly at higher speed, rather like the relationship between spur and helical gears. Hypoid gears look related but the shaft axes do not intersect, so they belong to a nearby but different category.

The governing geometry and force ideas

The speed ratio of a bevel gear pair still comes from tooth count:

i = Z_2 / Z_1 = N_1 / N_2

where Z is tooth count and N is rotational speed. The corner-turning effect comes from the pitch-cone geometry, not from a different ratio law. If a 20-tooth pinion drives a 40-tooth bevel gear, the speed ratio is still 2:1 just as it would be for cylindrical gears.

For shafts intersecting at angle Sigma, the two pitch angles delta_1 and delta_2 satisfy:

delta_1 + delta_2 = Sigma

For the common 90 deg case, the pitch angles add to 90 deg. For a right-angle pair with ratio i = Z_2 / Z_1, a useful beginner relation is:

tan(delta_1) = Z_1 / Z_2

and the larger gear takes the remaining angle. These angles matter because they decide the cone shape and also influence how the radial and axial forces split.

The transmitted tangential load at the mean pitch diameter is still tied to torque:

F_t = 2T / d_m

where T is torque and d_m is the mean pitch diameter. For a straight bevel gear, quick force estimates often use pressure angle phi and pitch angle delta like this:

F_r ~= F_t tan(phi) cos(delta)

F_a ~= F_t tan(phi) sin(delta)

These are simplified expressions, but they are useful because they show a real design fact: a bevel gear pair pushes on its bearings both outward and along the shaft. You cannot mount bevel gears on weak unsupported shafts and expect them to stay quiet.

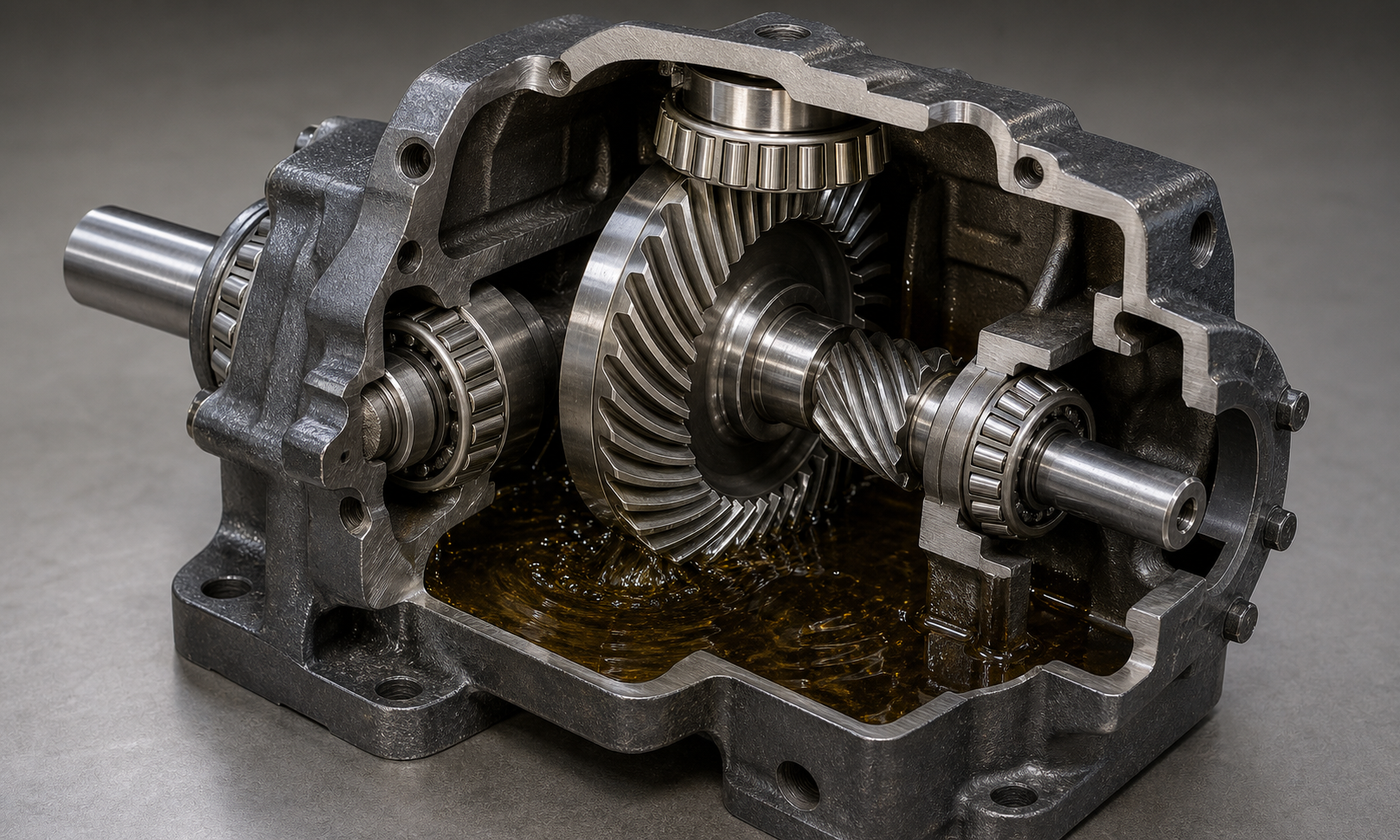

Figure 2: A bevel gear mesh depends on the whole support system. Bearings, shaft setting distance, housing stiffness, and lubrication all help determine where the tooth contact really lands.

Worked example 1: a bevel gear pair that changes both direction and speed

A motor drives a 18-tooth bevel pinion at 1440 rpm. It meshes with a 54-tooth bevel gear on a shaft at 90 deg. Find the output speed.

The ratio is:

i = Z_2 / Z_1 = 54 / 18 = 3

So the driven gear speed is:

N_2 = N_1 / i = 1440 / 3 = 480 rpm

The output shaft therefore turns at 480 rpm, and it points in a direction perpendicular to the input shaft. That is a simple but important reminder: a bevel gear set can reduce speed and increase torque at the same time that it turns the drive line through an angle.

For the same pair, the pinion pitch angle is approximately:

tan(delta_1) = 18 / 54 = 0.333

delta_1 ~= 18.4 deg

So the gear pitch angle is:

delta_2 = 90 - 18.4 = 71.6 deg

That tells us the small pinion is a narrow cone and the larger gear is a much broader one. Even before any stress calculation, the geometry is already giving us intuition about the physical shape of the set.

Worked example 2: estimating tooth load and bearing reaction components

A straight bevel pinion transmits 180 N m of torque at a mean pitch diameter of 120 mm. The pressure angle is 20 deg, and the pinion pitch angle is 35 deg. Estimate the tangential, radial, and axial forces on the pinion.

First convert the mean diameter:

d_m = 120 mm = 0.12 m

The tangential load is:

F_t = 2T / d_m = 2 x 180 / 0.12 = 3000 N

Now use tan(20 deg) = 0.364.

The radial component is:

F_r ~= 3000 x 0.364 x cos(35 deg)

F_r ~= 3000 x 0.364 x 0.819 = 894 N

The axial component is:

F_a ~= 3000 x 0.364 x sin(35 deg)

F_a ~= 3000 x 0.364 x 0.574 = 627 N

So one relatively modest bevel pinion can ask its support system to carry about 3000 N tangentially, 900 N radially, and 630 N axially. That is why bevel gearboxes usually rely on well-spaced bearings and rigid housings. If the shafts deflect, the tooth contact pattern moves and the mesh gets harsh very quickly.

Worked example 3: why mounting distance matters so much

Suppose a right-angle gearbox was set correctly on the bench and showed a centered contact pattern. During assembly, one shaft is moved by only 0.25 mm from its intended mounting position. The tooth size near the small end is already much smaller than at the large end. That tiny shift can move the contact patch toward the toe or the heel of the tooth.

The exact movement depends on the gear geometry, but the engineering point is simple: a quarter-millimeter error on a spur gear might mainly change backlash, while the same error on a bevel gear can change both backlash and where the load touches along the cone face. The result is often a whine under load, polished damage at one end of the tooth, and early pitting because the load is no longer shared across the intended area.

That is why bevel gear assembly often includes contact-pattern checks using marking compound. The engineer is not being fussy. The contact patch is a fast visual summary of whether the geometry, mounting distance, and shaft stiffness are all cooperating.

Straight bevel versus spiral bevel

Straight bevel gears are the easiest to understand and are often fine at moderate speed. Their tooth contact starts more abruptly, so they can be noisier than spiral bevel gears. Spiral bevel gears curve the tooth trace and bring the teeth into mesh more progressively. That usually improves smoothness, raises load-sharing quality, and makes them better suited for higher-speed service.

But spiral bevel gears are not automatically the answer to everything. They are harder to manufacture, more demanding to inspect, and more sensitive to setup quality. If the duty is light, the speed is modest, and cost matters, a straight bevel set may be the sensible answer. If the machine needs refinement, high speed, and better load distribution, spiral bevel gears usually earn their extra complexity.

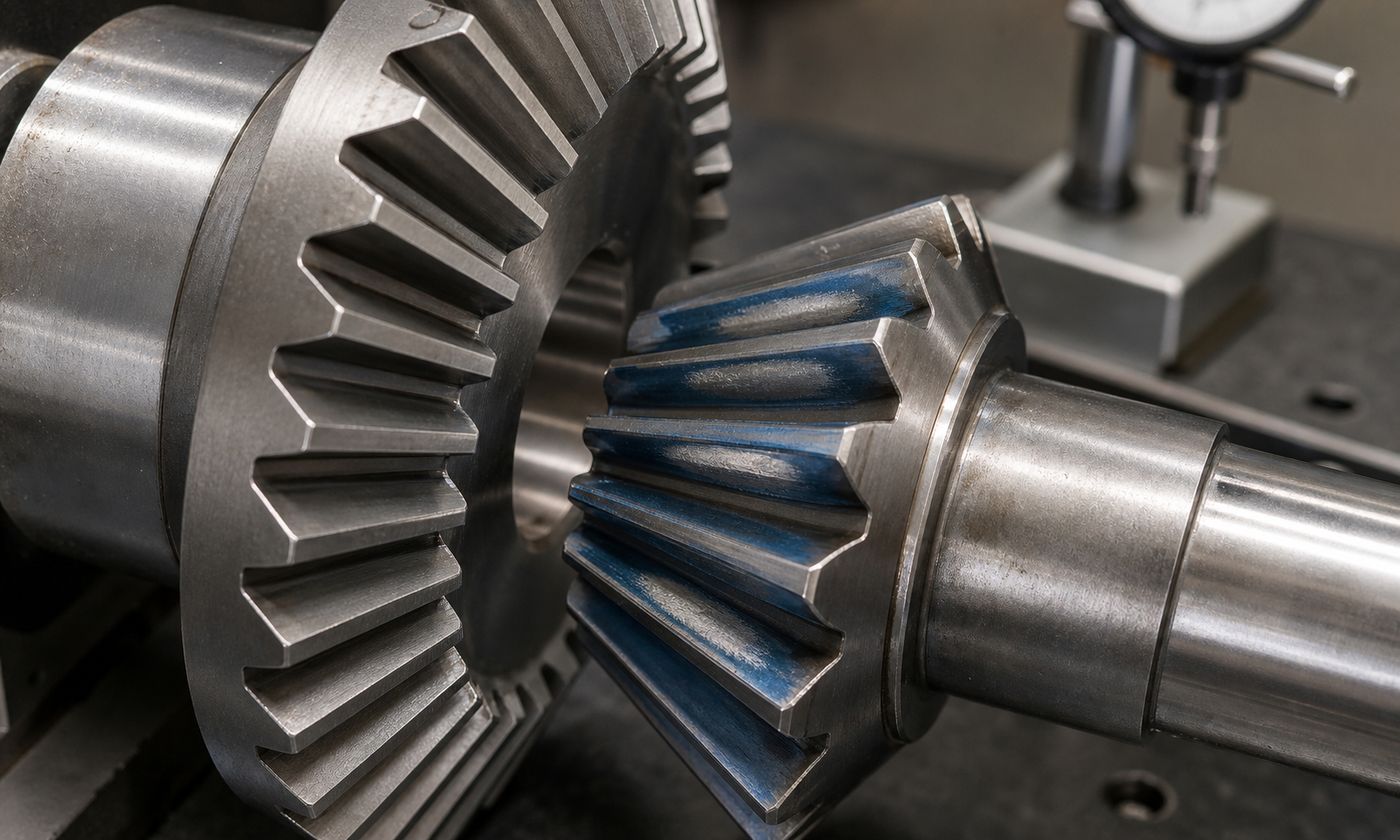

Figure 3: Marking compound lets the technician see where the teeth are really touching, which is one of the fastest ways to judge whether a bevel gear set is mounted correctly.

Assumptions and limits

The simple equations above assume accurate tooth geometry, correct mounting distance, adequate lubrication, and a housing stiff enough to preserve alignment. Real machines violate those assumptions in small ways every day. Shaft deflection, bearing clearance, thermal growth, machining error, and housing distortion all change the contact pattern.

The load estimates above are also introductory approximations. Real rating work uses more detailed geometry, dynamic factors, material strength, and contact stress calculations. Spiral bevel and hypoid gears add further complications because the tooth trace curvature and sliding behavior are more complex than a straight bevel pair.

So the beginner should use these equations for understanding and quick checks, not as the last word for production design. In bevel gears, small geometric errors often matter more than beginners expect.

Common failure modes and how they show up

• Pitting: repeated contact stress creates small craters on the tooth flank, often first appearing where the contact pattern is too concentrated.
• Scuffing: oil film failure under sliding contact leaves smeared or torn-looking tooth surfaces, especially at higher speed or poor lubrication.
• Tooth-root bending fatigue: a crack starts near the root and eventually breaks part of the tooth because repeated load exceeded the bending capacity.
• Edge loading: misalignment or wrong mounting distance forces the load toward the toe or heel, producing noise, localized polishing, and rapid surface distress.
• Bearing distress: the gears may look acceptable at first, but axial and radial reaction loads overheat or wear the bearings if the support layout is undersized.
• Whine or rumble: pitch error, poor contact pattern, loose bearings, or a flexible housing turns a theoretically correct bevel pair into an acoustically unpleasant gearbox.

Practical rules of thumb

• Use bevel gears when the shaft axes truly need to intersect. Do not force them into layouts better served by chains, belts, or parallel-shaft gears.
• For a simple right-angle change with 1:1 ratio, remember the miter gear option.
• Plan the bearing arrangement early because bevel gears generate both axial and radial reactions.
• Do not judge the design only by backlash. Contact pattern matters just as much.
• If the gearbox must be quiet at higher speed, investigate spiral bevel gears instead of assuming straight bevel gears will be acceptable.
• Protect the lubrication path. A bevel mesh near the top of a small housing can starve if the oil level or splash path is poor.

How standards treat bevel gears

Standards treat bevel gears as precision power-transmission elements, not just angled teeth. ISO 23509 gives the geometry vocabulary for bevel and hypoid gears. Accuracy and inspection standards define how profile, pitch, and tooth-trace errors are evaluated. Strength and durability rating methods from the AGMA family and corresponding ISO approaches are then used to check bending stress, contact stress, dynamic effects, and expected durability.

That standards view matches workshop reality. A bevel gear is acceptable only when its geometry, mounting, contact pattern, material, heat treatment, and support stiffness work together. You do not really finish a bevel gear design by choosing tooth count alone. You finish it when the loaded contact is where you intended it to be and the stresses stay within acceptable limits.

Engineering judgment

Bevel gears are the practical answer when power has to turn through an angle and the shafts intersect. Their genius is geometric: cone-based pitch surfaces let the speed ratio stay predictable while the drive line changes direction. Their difficulty is also geometric: because the teeth live on cones, the mesh is more sensitive to setup and support than many beginners expect.

If you remember only one thing, remember this: bevel gears do not forgive sloppy mounting. A spur gear set might survive a little alignment abuse with extra noise. A bevel gear set often answers that same abuse with a visibly shifted contact pattern, concentrated load, and short life. Good bevel gear design is therefore not only about tooth geometry. It is about the entire load path from tooth to shaft to bearing to housing.
