Worm gears: huge gear ratios in a tiny box

A small hoist, a gate actuator, or a conveyor indexer often needs a motor spinning at ordinary electric-motor speed while the output shaft creeps along slowly with much higher torque. You could stack several spur gear stages to get that reduction, but there is another compact trick: let a screw-shaped shaft drive a toothed wheel. That combination is called a worm gear set.

A worm looks like a helical thread wrapped around a shaft. The mating gear is the worm wheel. When the worm turns, its thread pushes along the teeth of the wheel, so the output shaft rotates at a much lower speed. The arrangement is famous for fitting large speed reduction into a short gearbox, but it pays for that convenience with sliding friction, heat, and lower efficiency than many other gears.

The plain-language picture

The easiest way to picture a worm gear is to imagine a bolt driving the edge of a gear. Each turn of the bolt thread drags the gear forward by only a few teeth, so the wheel moves slowly while the worm spins quickly. That is why worm reducers are popular when the machine layout needs big reduction without a large train of gears.

The feature that makes worm gears special is that the motion is mostly sliding contact, not mostly rolling contact. Spur gears mostly roll with a little sliding. Worm gears slide a lot more, which is why lubrication, bronze wheel materials, and heat removal matter so much. A worm reducer can be wonderfully compact and quiet, but it is not a free lunch.

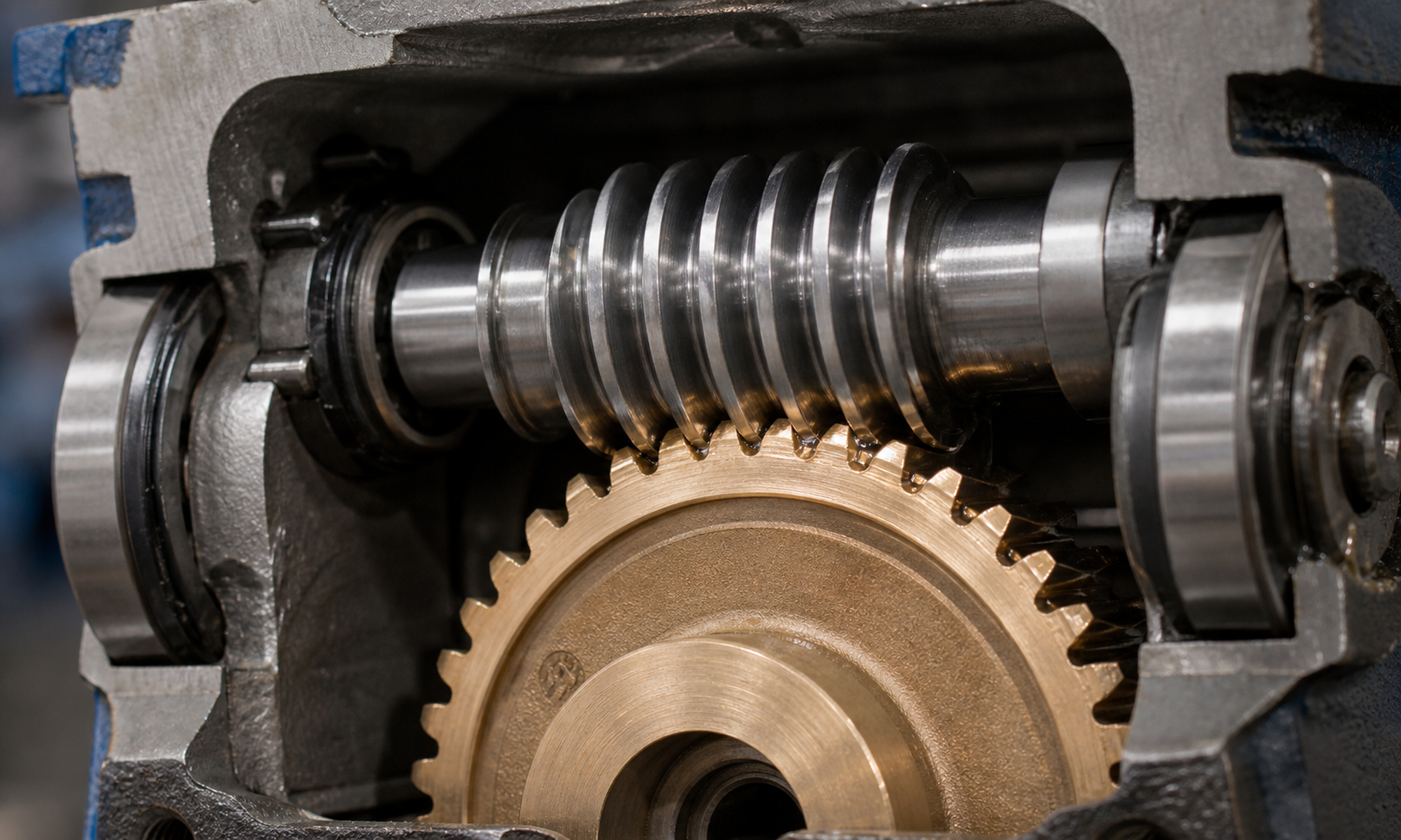

Figure 1: A worm gear pair turns very fast screw-like motion into slow wheel rotation. The geometry is compact, but the tooth contact is heavily sliding, so surface finish and lubrication matter immediately.

What makes a worm gear different

In a spur or helical gearbox, the gear ratio usually comes from comparing two ordinary tooth counts. In a worm gear, the worm itself acts like a threaded driver. The important count on the worm is the number of starts, meaning how many separate thread helices wrap around it. A single-start worm advances the wheel one tooth per worm revolution. A two-start worm advances it two teeth per revolution, and so on.

That gives a very simple ratio rule:

i = Z_g / n

where Z_g is the number of teeth on the worm wheel and n is the number of worm starts. If a wheel has 40 teeth and the worm has one start, the ratio is 40:1. If the same wheel is driven by a two-start worm, the ratio becomes 20:1. Large reduction is easy because increasing wheel tooth count is much easier than stacking many gear stages.

The next major difference is efficiency. Because the worm thread is sliding across the wheel teeth, energy is lost to friction. That lost power becomes heat in the oil, the bronze wheel, the housing, and the bearings. A worm reducer can therefore have excellent reduction in a small package, but it may run warmer and waste more power than a comparable helical or planetary reducer.

The governing physics

The speed relation is straightforward:

N_out = N_in / i

Torque rises roughly in proportion to ratio, but only after efficiency is considered:

T_out ~= eta x T_in x i

where eta is the gearbox efficiency written as a decimal. If efficiency were perfect, torque would multiply exactly by the ratio. Real worm gears always lose some of that multiplication to sliding friction.

A useful beginner-level efficiency estimate comes from the worm lead angle lambda and the friction angle rho:

eta ~= tan(lambda) / tan(lambda + rho)

with rho = arctan(mu), where mu is the friction coefficient. This is only an approximation, but it shows the right trend. A larger lead angle usually improves efficiency, while more friction lowers it. The same relation also explains why some worm sets resist back-driving. If the friction angle is larger than the lead angle, the wheel has a hard time driving the worm backward.

The load path matters too. The wheel tooth carries a tangential force that creates output torque, but the worm also sees a strong axial thrust along its shaft. That thrust can be large enough to dominate the bearing choice. A worm reducer that looks fine by torque alone can still fail early if the bearings, housing, or lubrication system are treated as an afterthought.

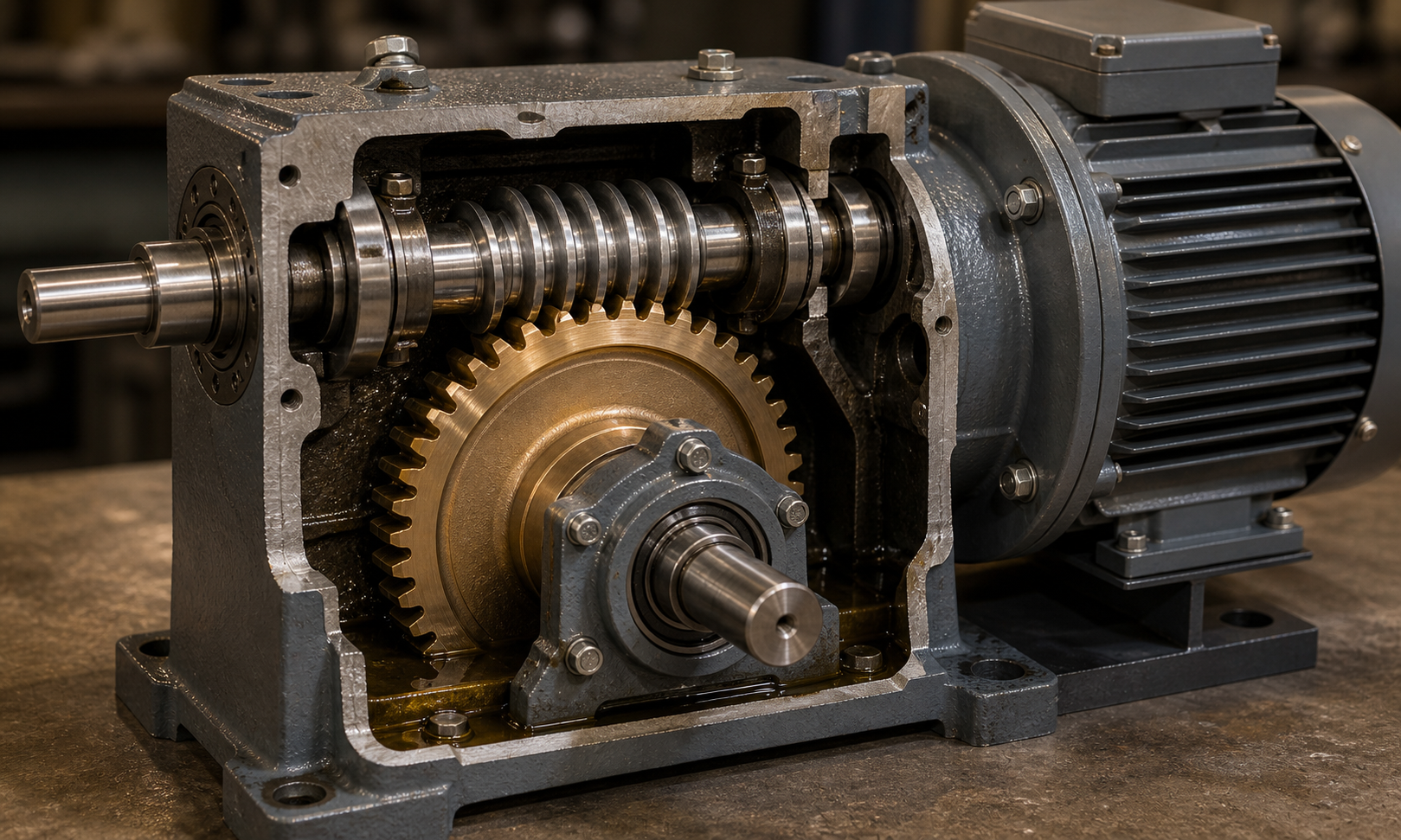

Figure 2: A practical worm reducer is a system, not just a gear pair. The worm, bronze wheel, thrust bearings, oil level, and housing stiffness all influence noise, temperature, and life.

Worked example 1: ratio and output speed

A packaging machine uses a worm reducer with a two-start worm and a 50-tooth worm wheel. The input shaft runs at 1440 rpm. Find the reduction ratio and output speed.

The ratio is:

i = Z_g / n = 50 / 2 = 25

So the output speed is:

N_out = 1440 / 25 = 57.6 rpm

That is the reason worm reducers are so attractive. A single gear pair has already taken a normal motor speed down below 60 rpm without needing multiple external stages.

Worked example 2: output torque, tangential force, and heat loss

The same reducer is driven by a 1.5 kW motor at 1440 rpm. Assume the reducer efficiency is 0.78. Estimate the input torque, output torque, output wheel tangential force if the wheel mean pitch diameter is 180 mm, and the power lost as heat.

Input torque from power and speed:

T_in = 9550 x P / N = 9550 x 1.5 / 1440 = 9.95 N.m

Output torque:

T_out ~= 0.78 x 9.95 x 25 = 194 N.m

The wheel mean pitch radius is:

r = 180 / 2 = 90 mm = 0.09 m

So the tangential force at the wheel is:

F_t = T_out / r = 194 / 0.09 = 2156 N

The power converted into heat is:

P_loss = P_in x (1 - eta) = 1.5 x (1 - 0.78) = 0.33 kW

That means about 330 W is heating the reducer continuously. For a small enclosed gearbox, that is not a minor detail. It affects oil choice, housing temperature, sealing, and allowable duty cycle.

Worked example 3: when back-driving becomes difficult

A gate operator uses a single-start worm with lead angle lambda = 4.5 deg. Under the actual lubrication condition, the friction coefficient is estimated as mu = 0.12. Is back-driving likely to be difficult?

First find the friction angle:

rho = arctan(0.12) = 6.84 deg

Now compare the angles. Because rho > lambda, the contact tends to resist reverse motion. In plain language, the wheel will have difficulty driving the worm backward.

That is why worm gears are popular in hoists, lifts, gates, and positioning drives where some resistance to back-driving is helpful. But it is still bad engineering to treat a worm reducer as a guaranteed safety brake. Vibration, wear, different lubricant temperature, polished tooth flanks, or shock loading can reduce the resistance. If people or heavy suspended loads are involved, use a real brake.

Why worm gears run quietly but not cheaply

Beginners often notice that worm reducers are compact and quiet, then assume they are automatically a premium choice. The quieter running is real because the contact can be smooth and continuous. But the sliding action creates more frictional loss than a well-made spur or helical mesh. That means worm gears trade efficiency for compact reduction and smooth motion.

The material pairing explains part of this. Many practical reducers use a hardened steel worm running against a bronze wheel. Bronze helps the wheel survive sliding contact and tolerate some misalignment or dirt better than a hard-steel-against-hard-steel pair would. The price is that the bronze wheel is often the sacrificial member. If lubrication goes bad, the wheel teeth usually show the damage first.

Assumptions and limits

The simple formulas above assume steady load, correct gear geometry, good tooth contact across the intended face width, and an efficiency value that already reflects the actual lubrication condition. Real worm reducers are sensitive to temperature because oil viscosity changes with heat. A set that is reasonably efficient when warm may be stiff and lossy at startup. A set that is fine in intermittent duty may overheat in continuous duty.

Another limit is that efficiency is not one fixed number for all speeds and loads. It moves with lead angle, material pairing, lubrication regime, sliding speed, and surface finish. That is why catalog reducers often have thermal ratings as well as mechanical torque ratings. You do not only ask, "Can the teeth carry the load?" You also ask, "Can the box get rid of the heat?"

Common failure modes and how they show up

• Wear: the bronze wheel teeth gradually thin or polish because of persistent sliding contact, especially under dirty or thin lubrication.
• Scoring or scuffing: local oil-film collapse causes torn, smeared, heat-damaged tooth flanks.
• Pitting: repeated contact stress breaks the surface and leaves small craters, often after alignment or lubrication has already degraded.
• Overheating: the housing runs hot, seals harden, oil darkens, and efficiency falls further as losses compound.
• Thrust-bearing distress: the worm shaft bearings overheat or loosen because axial load was underestimated.
• Backlash growth: tooth wear increases lost motion, making positioning drives feel sloppy.

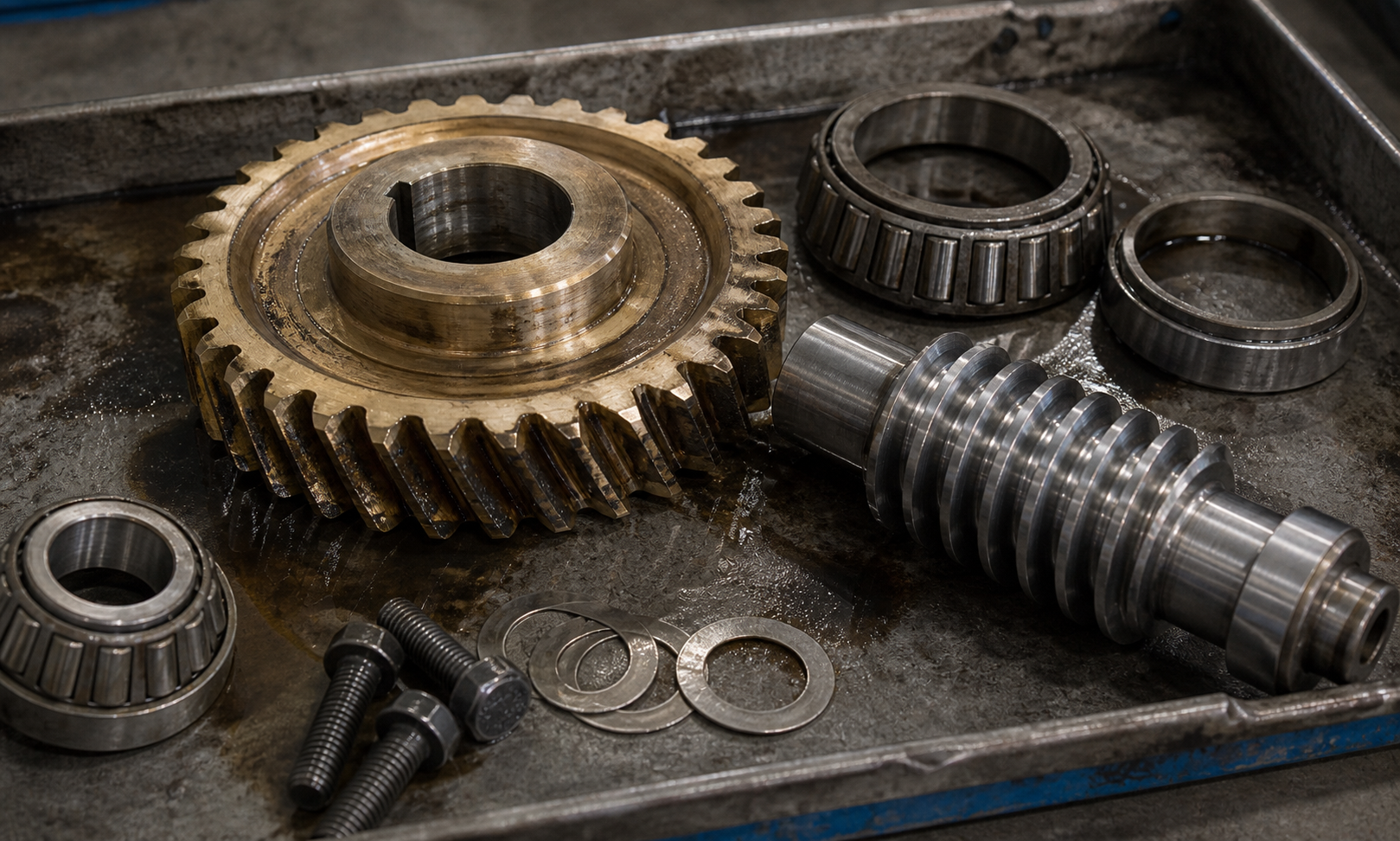

Figure 3: When lubrication or temperature control goes wrong, the bronze wheel usually tells the story first through polishing, scoring, and tooth-edge wear long before a full tooth breaks away.

Practical rules of thumb

• Use worm gears when you need large reduction in one compact stage and can accept lower efficiency.
• Check thermal rating as seriously as torque rating; a reducer that survives for ten minutes may still be wrong for continuous duty.
• Do not guess at self-locking. Evaluate lead angle, friction condition, shock loads, and the consequences of reverse motion.
• Expect strong axial thrust on the worm shaft and choose bearings accordingly.
• If precise positioning matters, track backlash over life because wear can gradually open the mesh.
• For high-duty or energy-sensitive drives, compare the worm reducer against helical or planetary options before committing.

How standards treat worm gears

Standards and manufacturer rating methods treat worm gears as a combined tooth-stress, wear, and thermal problem. In practice, ISO- and AGMA-style methods check surface durability, tooth-root strength, sliding conditions, lubrication quality, allowable temperature rise, and bearing reactions together. That matches workshop experience: a worm reducer is accepted only when tooth geometry, bronze-wheel wear resistance, oil selection, and heat rejection all make sense at the same time.

The standards mindset is useful even for beginners. It reminds you that worm gears are not chosen only because they make a big ratio. They are chosen because the whole package of ratio, compactness, efficiency, temperature, and back-drive behavior suits the machine.

Engineering judgment

Worm gears are one of the neatest examples of mechanical tradeoff. They can turn a fast small motor into slow strong output in a very compact box, and they often do it quietly. But the same sliding action that makes the ratio so compact also creates friction, heat, and wear. Good worm-gear design is therefore less about admiring the ratio and more about respecting the losses.

If you are choosing a worm reducer, ask six questions in order. What ratio is really needed? What duty cycle will the machine run? How much heat can the housing reject? Is back-driving helpful or dangerous? Where will the worm thrust go? And how much efficiency loss can the system afford? Those questions usually separate a smart compact design from a reducer that runs hot and disappoints.
