Roller, Needle, or Taper? Choosing the Right Bearing Shape

A truck wheel hub, a gearbox countershaft, and a compact rocker pin can all need a rolling bearing, but they should not all get the same shape. That is the beginner trap. People remember the load number first, then forget that the bearing also has to fit the available space, cope with axial thrust, and hold the shaft in the right position.

The shape of the rolling element is what changes the job the bearing is good at. A cylindrical roller bearing uses straight rollers to spread force over a long line contact, so it is strong and stiff in pure radial service. A needle roller bearing is still a cylindrical roller bearing, but the rollers are much slimmer, so it delivers radial capacity in a very thin envelope. A tapered roller bearing tilts the roller and raceway so the contact has an angle, which means the bearing can carry radial load and axial load together.

The bearing shape changes the load path

The first useful mental model is simple: line contact likes radial load, and contact angle creates thrust capacity. Straight rollers touch the raceways along a narrow strip. That strip is longer than the point-like contact in a ball bearing, so the local pressure is spread out and the bearing can carry higher radial load for a similar bore size. When the roller becomes tapered, the reaction force is no longer purely radial. It leans along the contact angle, so part of that reaction can resist axial thrust.

That is why these three bearings do not merely look different on a catalog page. They solve different machine problems. A cylindrical roller bearing is often the answer when the shaft sees a large gear or belt reaction but almost no thrust. A needle bearing is the answer when there is not enough wall thickness for a normal roller bearing. A tapered roller bearing is the answer when the shaft must be supported and located under combined radial and axial loading.

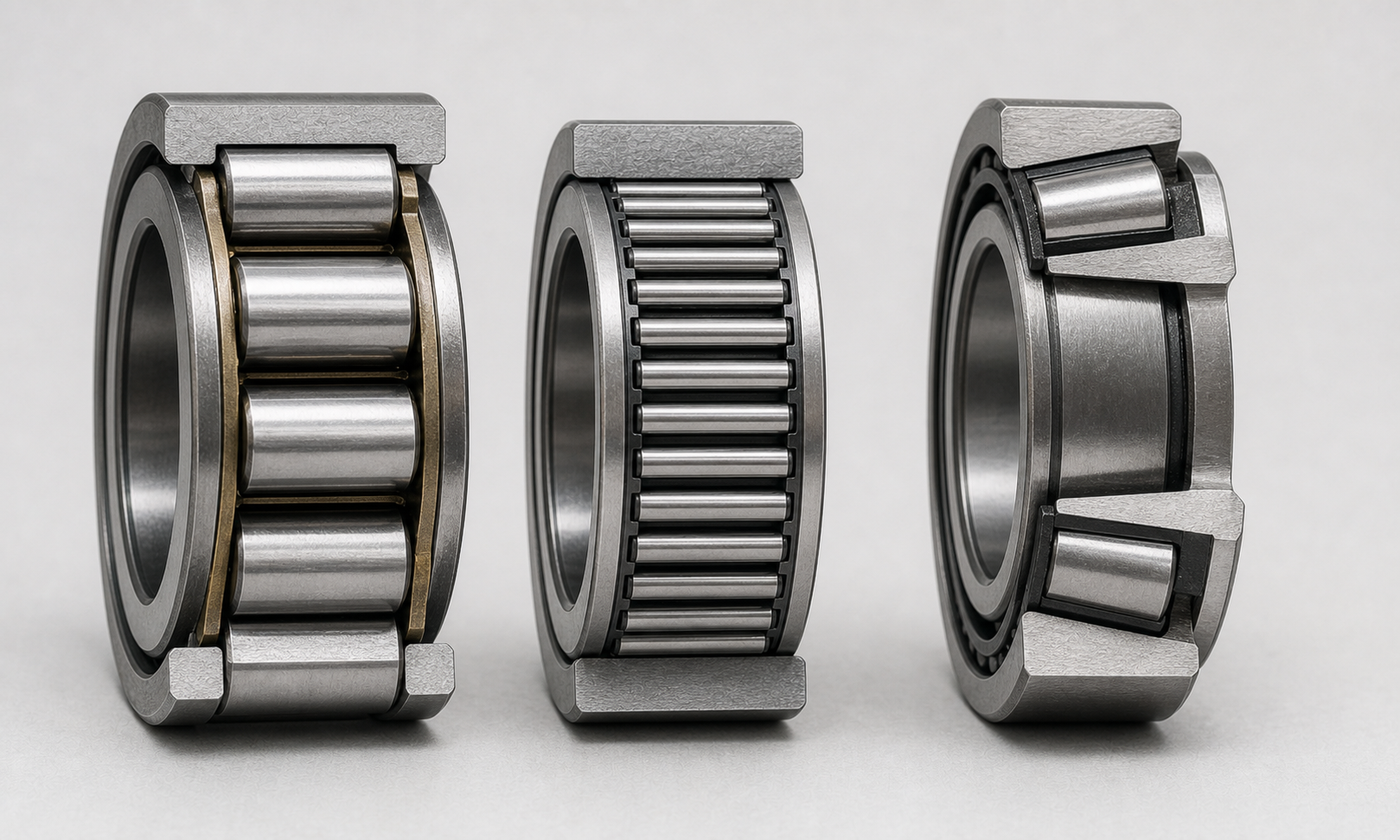

Figure 1: The roller shape itself tells you the job: cylindrical for heavy radial support, needle for thin radial envelopes, and tapered for combined radial and axial loading.

What each shape is really optimizing

Cylindrical roller bearings are the workhorses for heavy radial load. Their rollers are long enough to create generous line contact, and the rings are comparatively rigid. That makes them popular in gearboxes, electric motors, rolling mills, and machine-tool spindles. The tradeoff is that many cylindrical roller arrangements do not like much axial force unless the ring ribs and cage are designed for it. Even then, their thrust ability is usually a side feature, not the main reason you chose them.

Needle roller bearings solve a packaging problem first. If the shaft is small and the housing is only a few millimeters larger, a normal cylindrical roller set simply cannot fit. Needle rollers use a large number of slender rollers, so the bearing can still carry meaningful radial load while keeping the outer diameter small. The price is that the system becomes more sensitive to shaft hardness, surface finish, skew, and lubrication. In many designs the shaft itself becomes the inner raceway, which is efficient but demands a hard, accurately finished journal.

Tapered roller bearings are for combined load and positive location. Because the roller axis and raceway surfaces meet at a common apex, the bearing can react radial load and axial load at the same time. In practice they are usually installed in opposed pairs so the shaft is located in both axial directions. That makes them the classic choice for wheel hubs, pinion supports, and other assemblies where endplay or preload matters almost as much as raw load rating.

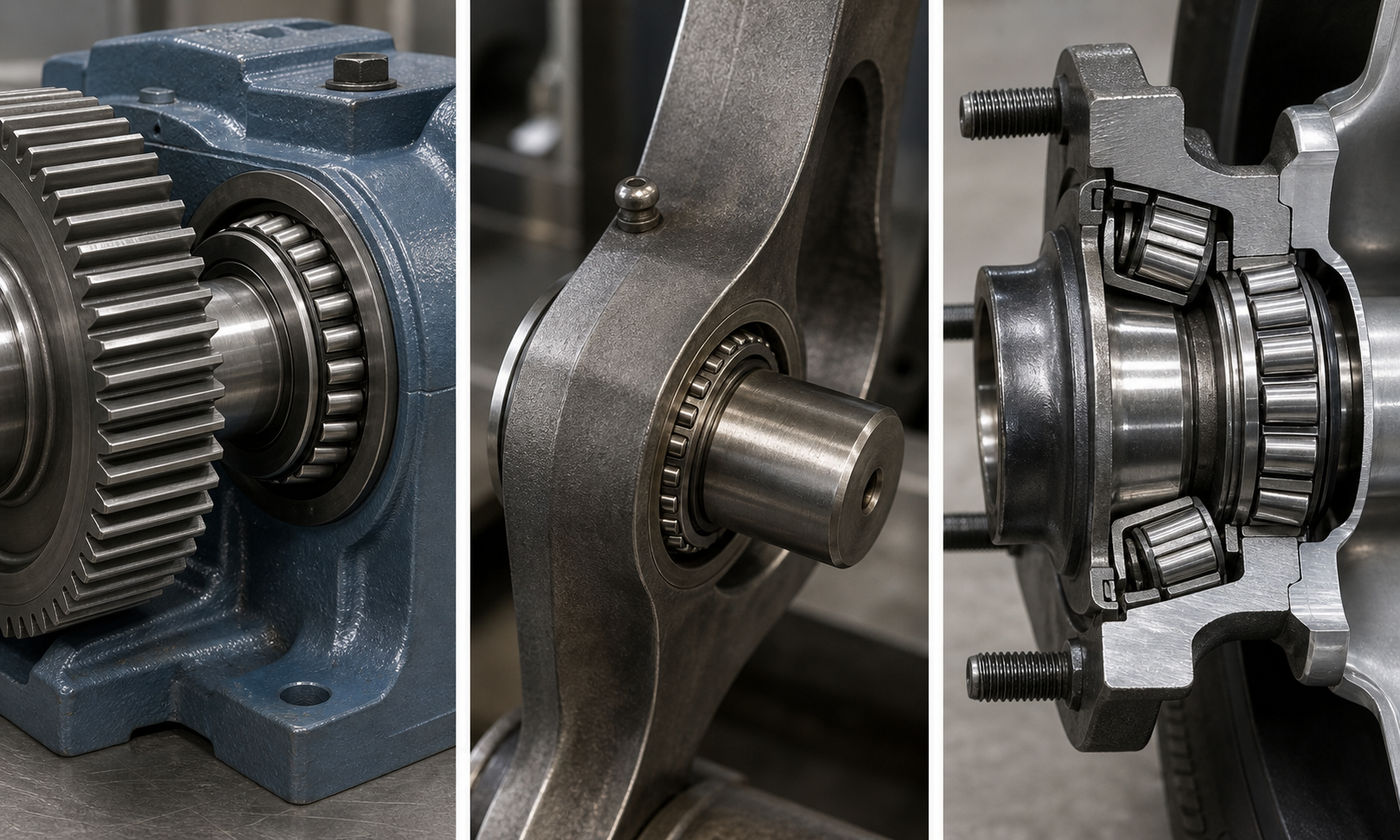

Figure 2: Real machines often decide the bearing family before the catalog does: gearbox shafts want radial stiffness, tight linkage eyes want thin sections, and hubs need thrust-capable location.

The governing physics engineers actually use first

You do not begin by calculating every microscopic Hertz contact stress. First you estimate the external forces, the available envelope, and the load direction. Three quick checks do most of the early sorting:

• projected pressure ~= load / projected contact area. This is not the full contact-stress solution, but it reminds you why longer rollers usually help radial capacity.
• radial section = (housing bore - shaft diameter) / 2. If the section is tiny, you are pushed toward needle rollers very quickly.
• P = X F_r + Y F_a. Catalogs use this equivalent load form for combined loading. The factors X and Y depend on the bearing type and the ratio of axial to radial load.

Those three checks already tell you a lot. If F_a is nearly zero and you have room, a cylindrical roller bearing is usually more natural than a tapered pair. If the radial section is only a few millimeters, a needle design may be the only realistic rolling solution. If the shaft must resist sustained thrust in both directions, a single needle or cylindrical bearing will not finish the job without extra thrust hardware, while an opposed tapered pair was built for exactly that problem.

Worked example 1: a gearbox countershaft

A spur gear on a countershaft applies a tangential force of 7.2 kN and a radial separating force of 2.6 kN. The gear sits 70 mm from the left bearing, and the two bearings are 220 mm apart. Because it is a spur gear, axial force is negligible.

The resultant gear force is:

F = sqrt(7.2^2 + 2.6^2) = 7.65 kN

Now treat the shaft as a simply supported beam. The left reaction is:

R_left = 7.65 x (220 - 70) / 220 = 5.22 kN

The right reaction is:

R_right = 7.65 - 5.22 = 2.43 kN

The left bearing is the critical one. The shaft has room for a conventional roller bearing, and the thrust load is effectively zero. That makes a cylindrical roller bearing the clean choice. If a candidate bearing has a basic dynamic rating of 32 kN, then the first-pass load ratio is only 5.22 / 32 = 0.16. More importantly, the long straight rollers give a stiff radial support, which helps the gear mesh stay aligned under load.

Worked example 2: a compact rocker pin

A packaging machine rocker pin is 18 mm in diameter and fits inside a link eye with a maximum bore of 26 mm. The oscillating radial load is 2.8 kN, and the side thrust is only about 0.05 kN.

The radial section available for the bearing is:

section = (26 - 18) / 2 = 4 mm

That number decides the story. A normal caged cylindrical roller bearing with useful ring thickness will not fit inside a 4 mm section. A drawn-cup needle bearing can. If the effective loaded roller length is 20 mm, a rough projected-pressure check is:

p_proj ~= 2800 / (18 x 20) = 7.8 MPa

That is only a screening calculation, but it shows the load is reasonable for the envelope. The correct engineering caution is elsewhere: the pin surface must be hard enough to act as a raceway, the lubrication groove must not starve the loaded zone, and axial location must be handled by thrust washers or shoulders outside the needle bearing itself. Here the needle bearing wins because packaging is the limiting constraint, not thrust capacity.

Worked example 3: a light trailer wheel hub

Consider one wheel position on a light trailer. The bearing set sees a radial wheel load of 6.4 kN and an axial load of 2.2 kN during combined cornering and braking. The hub must also be located accurately so the brake disc does not wander side to side.

A tapered roller bearing pair is the natural candidate because it can carry radial and axial load together. Suppose the catalog factors for one bearing under this loading condition are approximately X = 0.4 and Y = 1.6. The equivalent load becomes:

P = 0.4 x 6.4 + 1.6 x 2.2 = 2.56 + 3.52 = 6.08 kN

That load level is still manageable for a modest hub bearing, but the real reason for choosing taper is not just the number. The opposed pair gives controlled endplay or preload, it supports thrust in both directions, and it keeps the wheel location stable when braking, cornering, or hitting potholes. A cylindrical or needle bearing could carry the radial part, but you would still need a separate thrust arrangement and a location strategy. The tapered pair solves the whole assembly problem at once.

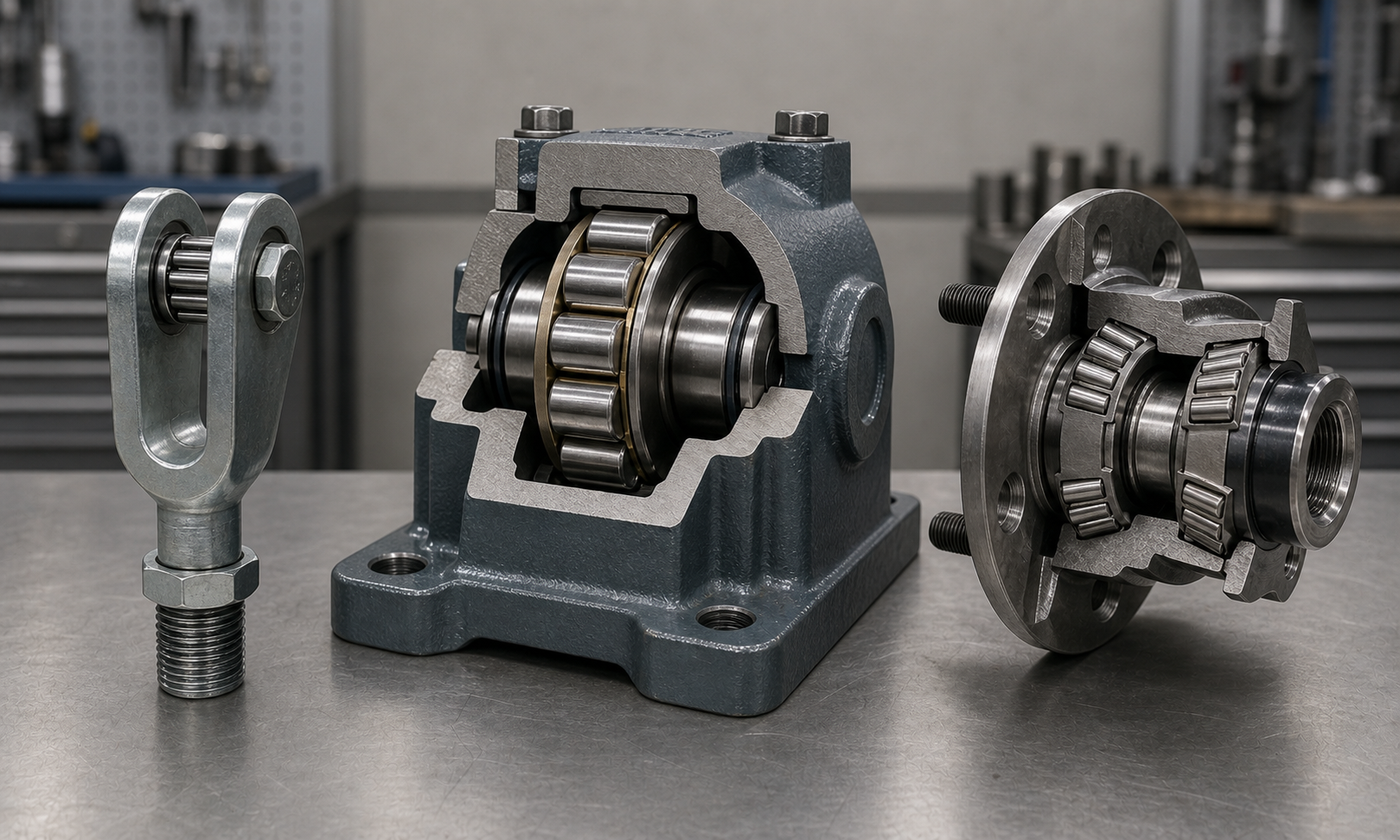

Figure 3: A first-pass bearing choice usually comes down to packaging and load direction: thin radial space pushes toward needle rollers, heavy pure radial support favors cylindrical rollers, and axial location pushes toward tapered pairs.

Assumptions and where the simple rules break down

These examples assume good alignment, ordinary temperatures, proper fits, and clean lubrication. Real bearing choice also depends on speed, cage design, shock loading, housing stiffness, and how much shaft misalignment is expected. Needle bearings in particular can become troublesome if the shaft deflects and the rollers start skewing. Tapered rollers can run hot if preload is too high. Cylindrical rollers can suffer rib distress if they are quietly asked to carry more axial force than the arrangement was meant for.

Another limit is that a bearing never works alone. The shaft shoulder, spacer stack, locknut, seal drag, and housing expansion all influence the real load. Beginners sometimes compare catalog ratings without checking how the shaft is actually being located. That is how a technically strong bearing choice becomes a weak assembly.

Common failure modes for each shape

• Cylindrical roller bearings: raceway spalling under overload, cage damage at high speed, and rib wear when unexpected axial force shows up.
• Needle roller bearings: shaft-raceway scoring, roller skew, edge loading, and false brinelling in oscillating service with poor lubrication.
• Tapered roller bearings: heat from excessive preload, uneven load sharing between the pair, and cup or cone wear when adjustment is loose.

Notice that many of these failures are system failures, not merely weak-material failures. The wrong fit, the wrong preload, dirty grease, or a soft shaft journal can ruin an otherwise correct bearing type.

Practical rules of thumb

• If the shaft sees mostly radial load and you have room, start with cylindrical rollers before you jump to a more complicated arrangement.
• If the radial section is around 4 mm or less, check needle bearings early because many standard roller bearings will not package cleanly.
• If the bearing itself must locate the shaft under real thrust in both directions, think in tapered pairs, not single radial bearings plus wishful thinking.
• Use needle bearings only if you can guarantee the raceway hardness, finish, and lubrication they demand.
• Do not set tapered bearing preload by feel alone on critical machinery. The assembly method matters as much as the bearing type.

How standards and catalogs treat the topic

Standards help by packaging the difficult physics into consistent ratings and limits. ISO 281 is the usual framework for dynamic load rating and rating life. ISO 76 covers static load rating, which matters when denting or brinelling is the concern. ISO 492 organizes tolerance classes, and clearance standards such as ISO 5753 help you think about internal clearance before and after fits and temperature change.

The important engineering habit is to treat those standards as structure, not as a shortcut around judgment. Catalog equations can compare bearings, but they do not know whether your shaft is bending too much, whether your grease path reaches the loaded zone, or whether your housing machining is good enough to keep the load where the catalog assumed it would be.

Engineering judgment: choose the shape that solves the assembly problem

The clean summary is this: choose cylindrical rollers when radial load and stiffness dominate, choose needle rollers when radial space is painfully limited, and choose tapered rollers when radial and axial loads must be handled together while locating the shaft. The correct answer is rarely the bearing with the biggest rating on the page. It is the one whose geometry matches the machine's actual constraints.
