Lubrication: How oil keeps metal parts from eating each other

A chain that ran quietly last month starts chirping. A gearbox that felt cool now smells hot. A bronze bush that should have lasted years comes out blackened and scored. In each case the metal did not suddenly become weak. The machine lost control of the thin layer that was supposed to keep its surfaces separated. That layer is lubrication.

Lubrication is the engineering practice of placing a fluid or semi-solid material between moving surfaces so friction, wear, and temperature stay under control. Oil and grease do much more than make things feel slippery. They build load-carrying films, carry heat away, flush dirt out of contact zones, resist corrosion, and sometimes help seal the machine against water or dust. When lubrication is neglected, machine parts do not politely wear down in slow motion. They often move from healthy to damaged very quickly because rough metal peaks start rubbing directly.

What lubricant is actually doing inside a machine

Real machine surfaces are never perfectly smooth. Under a microscope they look like hills and valleys. Engineers call those high spots asperities. If two dry steel parts slide against each other, the asperities touch first, local pressure becomes extremely high, and the surface can weld, tear, or score in tiny patches. A lubricant reduces that damage in two ways. First, it forms a separating film so the asperities touch less or not at all. Second, it provides controlled shear inside the lubricant itself, which is much gentler than steel-on-steel rubbing.

That is why the same lubricant can seem to do contradictory jobs. It must be thick enough to stay in the contact and create film pressure, yet not so thick that it wastes power by excessive churning. It must flow into narrow clearances, yet cling strongly enough that it is not thrown off immediately. It must survive temperature rise, water contamination, and oxidation long enough for maintenance to remain practical.

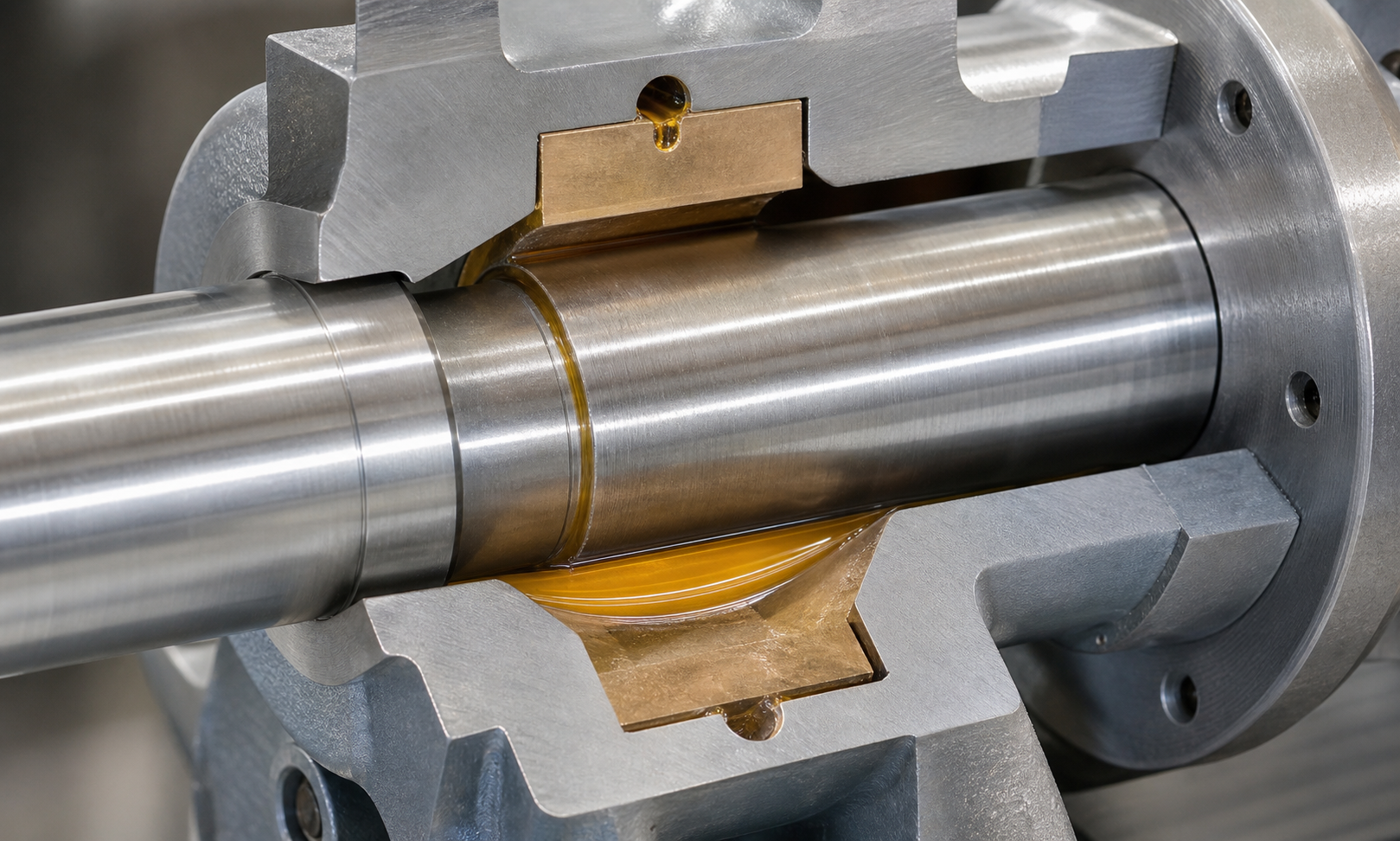

Figure 1: Lubrication works when the moving surfaces are separated by a controlled film instead of rubbing directly on their highest roughness peaks.

The three lubrication regimes beginners must know

Most introductory mistakes come from thinking a machine is either lubricated or not lubricated. Real contacts move through different lubrication regimes.

• Boundary lubrication: the film is so thin that surface asperities still touch. Protection depends heavily on anti-wear additives, surface chemistry, and material pairing. Startup, shutdown, slow oscillation, and heavily loaded joints often live here.
• Mixed lubrication: part of the load is carried by fluid film and part by direct asperity contact. Friction and wear are lower than dry rubbing, but still sensitive to contamination and surface finish.
• Full-film lubrication: the surfaces are separated by a continuous lubricant film. In hydrodynamic and elastohydrodynamic contacts, the load is carried mainly by pressure inside the fluid.

The shift between these regimes is controlled by speed, load, viscosity, and geometry. Increase speed and film formation becomes easier. Increase load and the film is squeezed thinner. Increase viscosity and the film usually becomes stronger, but power loss also rises. That balance is the heart of lubrication engineering.

A machine can have plenty of oil present and still be poorly lubricated if the oil is too thin, too dirty, too hot, or unable to reach the loaded contact at the right time.

Why viscosity matters more than the bottle color

Viscosity is a lubricant's resistance to flow. Thick honey has high viscosity. Warm water has low viscosity. In engineering service, viscosity decides whether the lubricant can form a useful film at the real operating temperature. That last phrase matters. Oil that looks suitably thick in a drum at room temperature may become much thinner after an hour inside a gearbox or pump.

Engineers usually think in terms of two related ideas. Dynamic viscosity describes the shear resistance of the fluid itself. Kinematic viscosity is the dynamic viscosity divided by density and is the value most industrial oil grades are organized around. If viscosity is too low, the film collapses and wear rises. If it is too high, the machine wastes power by churning and shearing the oil, and cold starts become harder.

Grease adds another layer to the story. Grease is not simply "thick oil." It is usually oil held inside a soap or non-soap thickener network. Under shear, that structure releases oil into the contact. That is why grease selection depends both on base-oil viscosity and on consistency. A grease that stays neatly inside a housing is not automatically a good lubricant if the released oil is wrong for the speed and load.

Worked example 1: why lubrication cuts friction power so dramatically

A packaging machine uses a steel slide moving on an oil-lubricated bronze strip. The guide carries 3.2 kN and slides at 0.18 m/s. The projected contact area is 45 mm x 60 mm.

First estimate the average contact pressure:

A = 0.045 x 0.060 = 0.0027 m^2

p = W / A = 3200 / 0.0027 = 1.19 MPa

Now compare friction power in two different conditions. Suppose the lubricated guide runs with an effective friction coefficient of 0.03, while a badly starved contact behaves closer to 0.20.

P_lubricated = f W v = 0.03 x 3200 x 0.18 = 17.3 W

P_starved = 0.20 x 3200 x 0.18 = 115.2 W

The load and speed are identical. The only difference is the lubrication state, yet the sliding contact now has almost seven times more friction power to dump as heat. That extra heat accelerates oxidation, softens boundary films, and makes the guide more likely to seize. This is why lubrication problems often arrive as both a wear problem and a temperature problem at the same time.

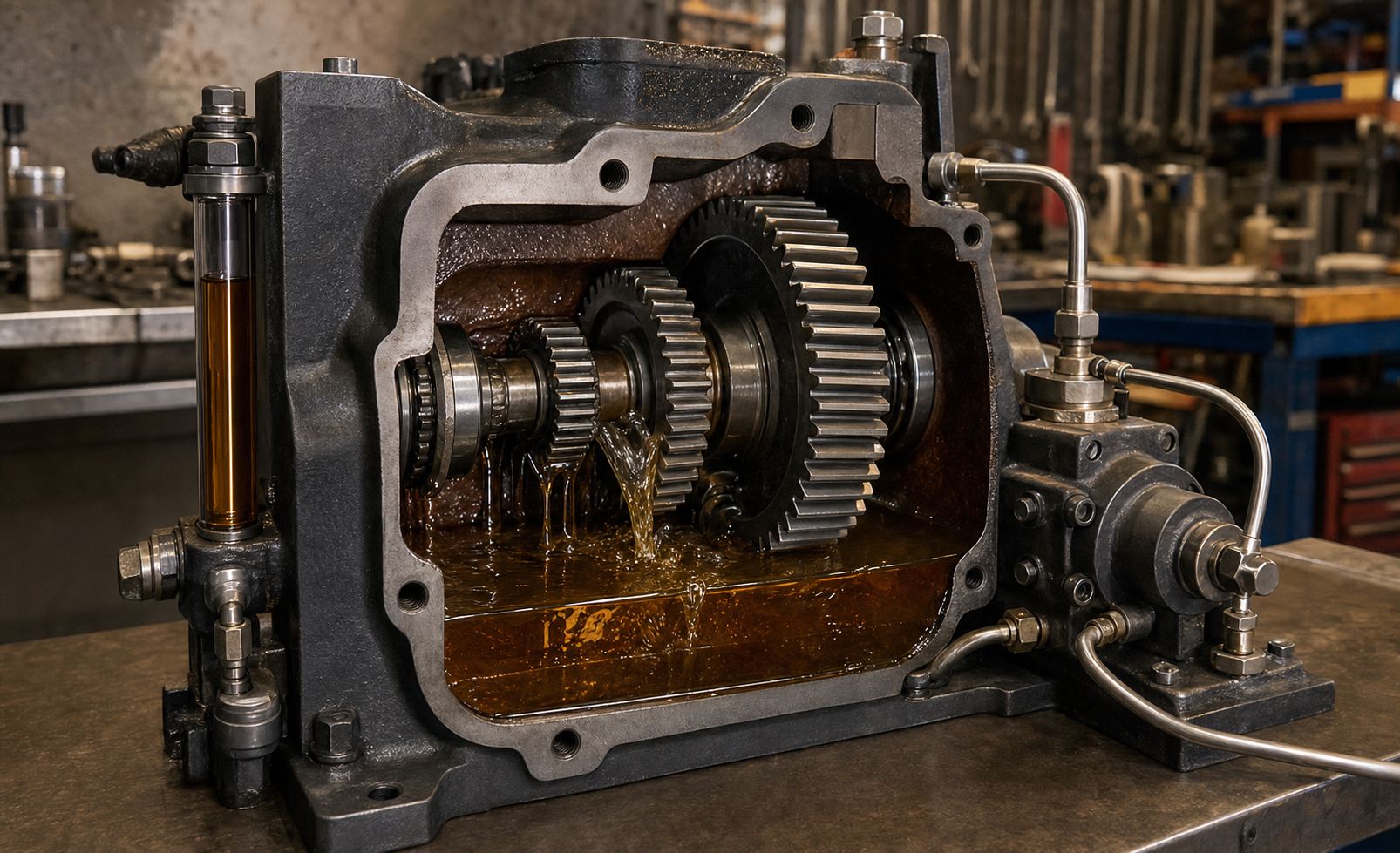

Figure 2: Lubrication is a system problem: the contact, oil path, temperature, and return flow all have to work together.

Worked example 2: checking whether circulating oil can carry the heat away

A small enclosed gearbox throws oil onto its gears and also circulates oil through a side loop. During steady service, estimate that friction and churning generate 420 W of heat inside the housing. The circulation flow is 6 L/min. Take oil density as 860 kg/m^3 and specific heat as 2000 J/kg.K.

First convert flow rate to mass flow:

Q = 0.006 / 60 = 0.0001 m^3/s

m_dot = rho Q = 860 x 0.0001 = 0.086 kg/s

The ideal bulk temperature rise needed to absorb the heat is:

Delta T = P / (m_dot c_p) = 420 / (0.086 x 2000) = 2.44 C

That number is encouraging, but it must be interpreted correctly. It does not mean every point in the gearbox is only 2.4 C hotter than the supply oil. Local tooth contacts, bearings, and seals can still run much hotter than the average bulk oil. What the calculation tells us is that the overall oil flow is probably large enough to transport the generated heat if the flow really reaches the hot zones and if the cooler, housing, and oil level are all behaving as intended.

How oil film, additives, and contamination share the job

Beginners often hear that a good lubricant is "slippery," but that word hides three different mechanisms. First is film formation from viscosity. Second is additive chemistry. Anti-wear and extreme-pressure additives react with metal surfaces and form sacrificial boundary layers when the full fluid film becomes too thin. Third is cleanliness. Even the right oil cannot protect a contact if hard dirt particles are larger than the film thickness and keep plowing through it.

This is why two identical machines can show totally different life even when both are "using the same oil." One machine may run cooler, filter the oil better, and keep water out. The other may run hotter, pull in dust through a bad breather, and turn the lubricant into an abrasive slurry. Lubrication is not only about the can you buy. It is about the condition the lubricant remains in while the machine is working.

Assumptions and where simple lubrication logic can fail

Introductory calculations usually assume smooth steady motion, constant load, and a lubricant whose properties do not change much with temperature. Real equipment rarely behaves that nicely. Gear teeth see rolling and sliding that change continuously through the mesh. Cam followers slow down and reverse direction. Bearings experience startup and shutdown every day. Water can enter during washdown. Grease can channel and stop replenishing the contact. Even a small increase in temperature can reduce viscosity enough to move the contact from safe full-film operation into mixed lubrication.

Surface finish matters as well. A rough shaft and a rough bush need a thicker film than a finely finished pair. Alignment matters because skewed parts load one edge first. Material pairing matters because bronze-on-steel behaves differently from hardened steel-on-hardened steel. That is why lubrication tables and rules of thumb are only starting points. Real design work asks what the contact is actually doing in service.

Common failure modes and how they show up

• Oil starvation: not enough lubricant reaches the contact. The first clues are rising temperature, noise, and polished or smeared tracks in the load zone.
• Wrong viscosity: oil too thin leads to film collapse; oil too thick causes churning losses, sluggish cold starts, and poor penetration into tight clearances.
• Contamination: dust, wear debris, and hard particles score surfaces and damage rolling contacts long before the oil itself is chemically exhausted.
• Water ingress: water weakens films, promotes rust, and can destroy additive performance. Milky oil is a warning sign, not just a cosmetic issue.
• Oxidation and varnish: overheated oil forms acids and sticky deposits that block passages, slow valves, and trap heat.
• Grease overpacking: too much grease churns, overheats, and can be almost as harmful as too little in rolling bearings.

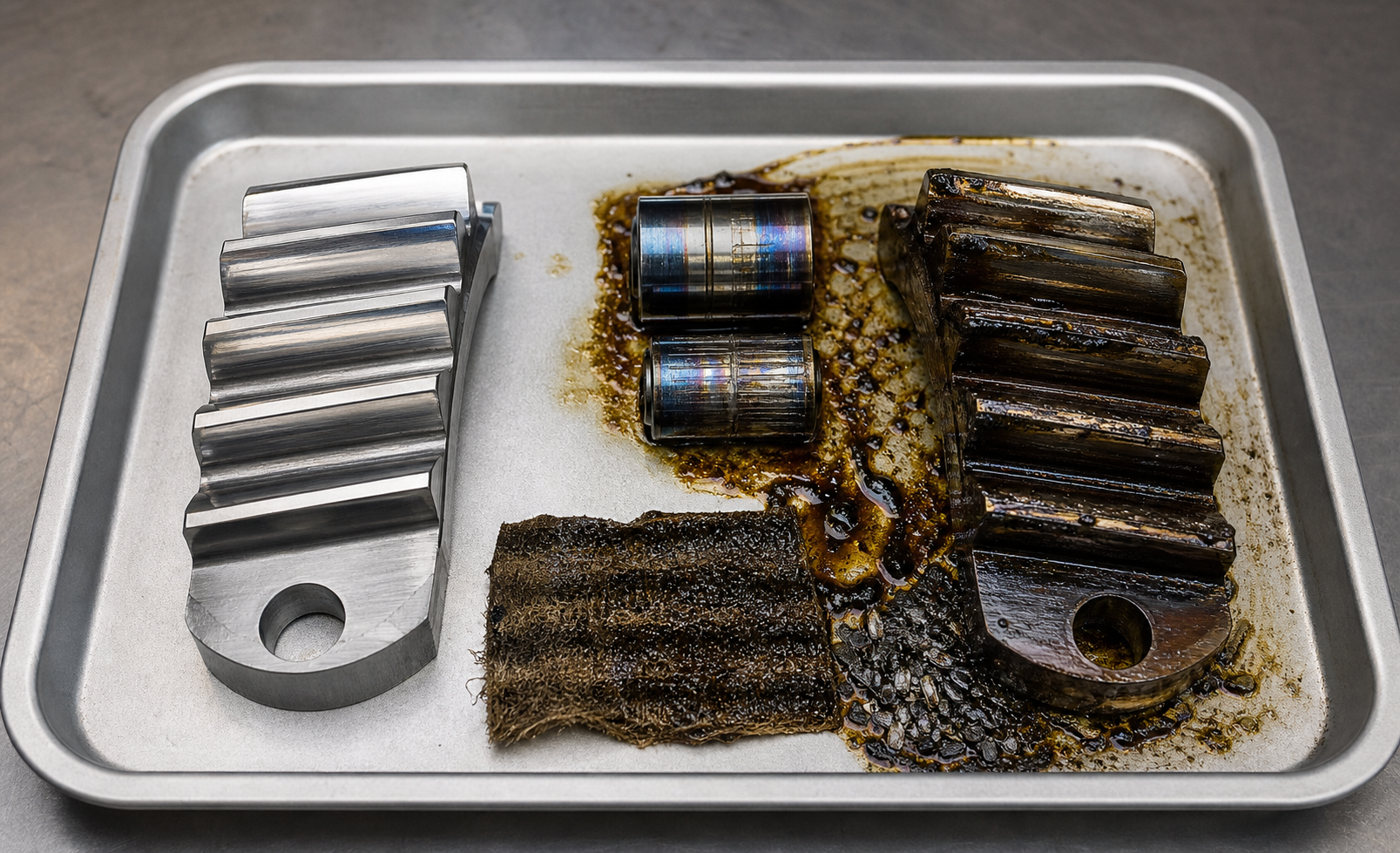

Figure 3: Lubrication failures leave physical evidence: scoring, discoloration, dirt loading, varnish, and surfaces that no longer look evenly polished.

Practical rules of thumb

• Choose lubricant by the contact type, operating temperature, speed, and load - not by habit or by whatever drum is nearest.
• The right viscosity at running temperature matters more than the apparent thickness of cold oil during inspection.
• Cleanliness control often buys more life than moving to a more expensive lubricant grade with the same dirt problem still present.
• Relubrication intervals should match the machine duty. A slow lightly loaded hinge and a hot electric-motor bearing do not consume grease the same way.
• If a component is already running hot, adding more grease or thicker oil without understanding the cause can make the problem worse.
• The best lubricant still fails if passages, grooves, seals, breathers, and drain paths are badly designed.

How standards treat lubrication

Lubrication standards rarely give one magical answer. Instead they organize the variables engineers need to control. Industrial oil viscosity grades are commonly grouped through ISO 3448, so oils can be specified by viscosity range rather than by vague labels. Grease consistency is commonly discussed with NLGI numbers, which describe how stiff or soft the grease is. Oil cleanliness is often tracked with ISO 4406, which turns particle contamination into a code engineers can monitor and improve.

For enclosed gears and other machine families, OEM manuals and application-specific standards add requirements for anti-wear or extreme-pressure performance, corrosion resistance, foaming behavior, and oxidation stability. The important point is that standards treat lubrication as a measurable engineering variable. They push you to specify viscosity, cleanliness, consistency, and performance tests instead of saying only "use oil" or "apply grease occasionally."

Engineering judgment: the lubricant is a machine element

Beginners often treat lubricant as a maintenance afterthought, while experienced engineers treat it like a designed component. That is the correct mindset. The oil film in a gear tooth contact or bearing is every bit as real as the tooth flank or bearing race, even though you cannot hold it in your hand. It has thickness, shear strength, temperature limits, contamination sensitivity, and failure modes.

If you remember one thing, let it be this: machine parts do not survive because metal is naturally kind to metal. They survive because a controlled lubricant film, supported by correct viscosity, clean delivery, and realistic maintenance, keeps damaging contact from taking over. For a related deep dive into one important full-film application, read Journal bearings: floating a shaft on a film of oil or continue through the EnggTools articles library.
