Gear trains: chaining gears to multiply force

A small electric motor in a mixer, a gate opener, or a conveyor usually spins much faster than the machine actually needs. The machine may want slow, steady, high-torque output instead. A single pair of gears can reduce speed, but sometimes one pair is not enough or would become too large to package neatly. That is where a gear train comes in.

A gear train is simply a sequence of meshing gears that passes motion from one shaft to the next. Each mesh trades some speed for some torque, so several meshes together can create a much larger overall reduction than one stage alone. The idea sounds simple, but the engineering value is deeper: gear trains let designers control ratio, rotation direction, shaft spacing, package size, and load distribution all at once.

The plain-language picture

If one gear pair is like two people handing off a box, a gear train is like a relay line. The first gear hands motion to the second, the second to the third, and so on. Every handoff changes the speed according to the tooth counts involved. A small driver turning a larger driven gear slows down and gains torque. If that larger gear shares a shaft with another small gear, the process can start again in the next stage.

The important beginner insight is that gear trains do not create energy. They reshuffle it. Ignoring losses, if speed goes down, torque goes up by the same proportion. In real machines, friction, churning oil, bearing drag, and tooth sliding steal some power, so the output torque is always a little less than the ideal value.

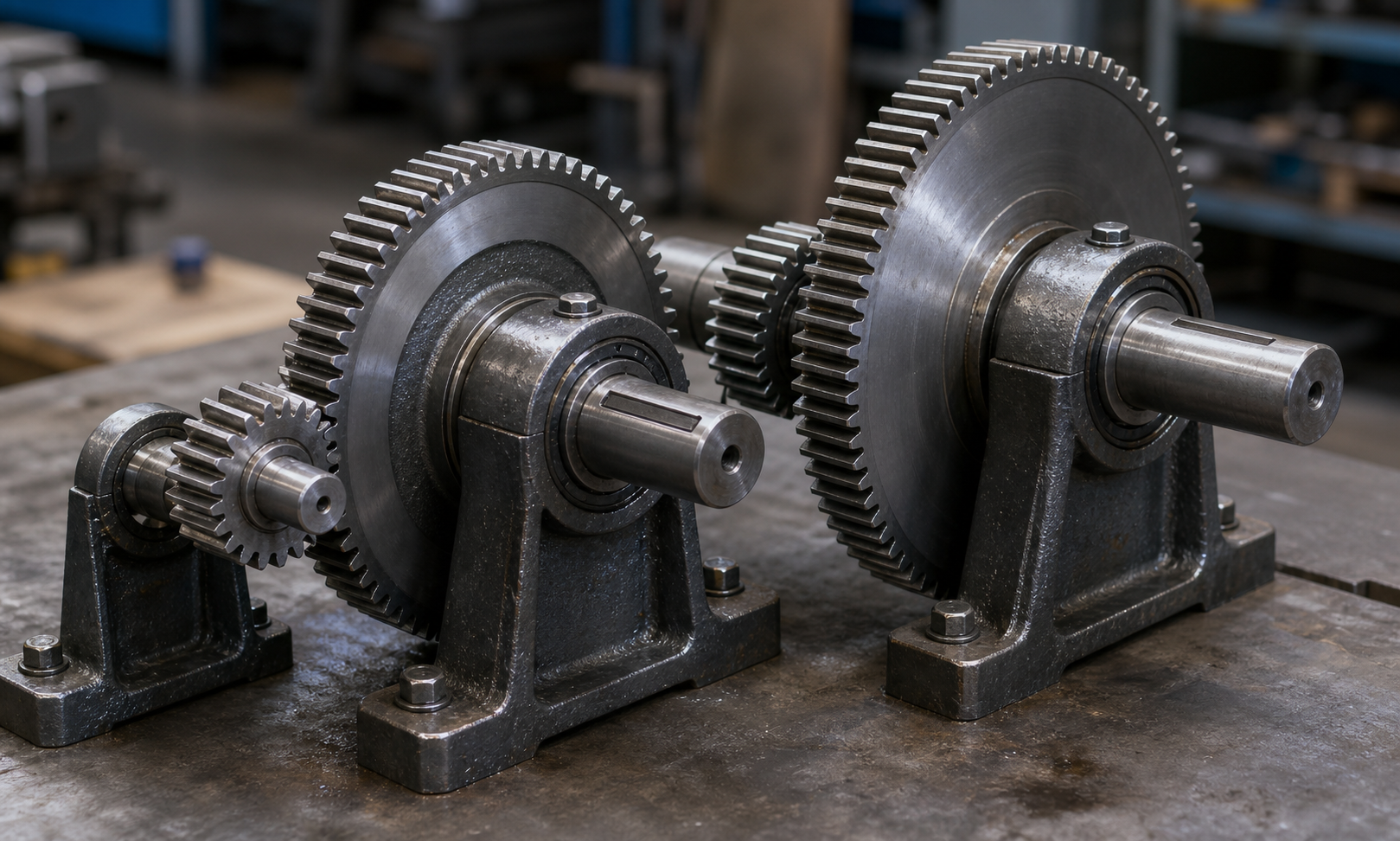

Figure 1: A compound gear train uses one gear pair to slow the input shaft, then repeats the reduction on a second pair mounted on another shaft. The sequence lets a compact gearbox create much more torque than one single mesh could provide comfortably.

Simple gear trains, compound gear trains, and idlers

In a simple gear train, each shaft carries only one gear. Motion passes from one gear to the next, and each shaft rotates at the speed set by that single mesh. In a compound gear train, one shaft carries two gears rigidly together. The first gear on that shaft receives motion, and the second gear sends it onward. Because both rotate at the same shaft speed, the reduction from one stage multiplies with the reduction from the next.

An idler gear is a gear inserted between driver and driven without changing the overall ratio. It is useful when the layout needs more center distance, when the output must rotate in a certain direction, or when the designer needs to route power around another component. Idlers are often misunderstood by beginners because they look like "extra ratio," but they mainly change geometry and direction, not the final speed ratio.

That distinction matters in real design. Suppose you need 12:1 reduction. A single 20-tooth pinion driving a 240-tooth gear would be awkward, heavy, and expensive. A compound train can split the same reduction into two sensible stages, such as 3:1 followed by 4:1, using gears that fit a much smaller housing.

The governing physics

For one external spur-gear mesh, the pitch-line velocities match, so the speed ratio comes from tooth count:

N_1 / N_2 = Z_2 / Z_1

or written another way:

N_2 = N_1 x Z_1 / Z_2

where N is rotational speed in rpm and Z is number of teeth. A small driver feeding a larger driven gear makes the output slower.

For a compound train, the stage ratios multiply:

i_total = (Z_2 / Z_1) x (Z_4 / Z_3) x ...

The output speed is then:

N_out = N_in / i_total

Ideal output torque rises in the same proportion, but the real value must include efficiency:

T_out ~= T_in x i_total x eta_total

If each stage has efficiency eta_1, eta_2, and so on, then:

eta_total = eta_1 x eta_2 x ...

Direction also matters. Every external gear mesh reverses rotation. That means an odd number of external meshes reverses the final shaft relative to the input, while an even number gives the same direction. This is one reason idlers are so useful: they can fix rotation sense without changing the ratio.

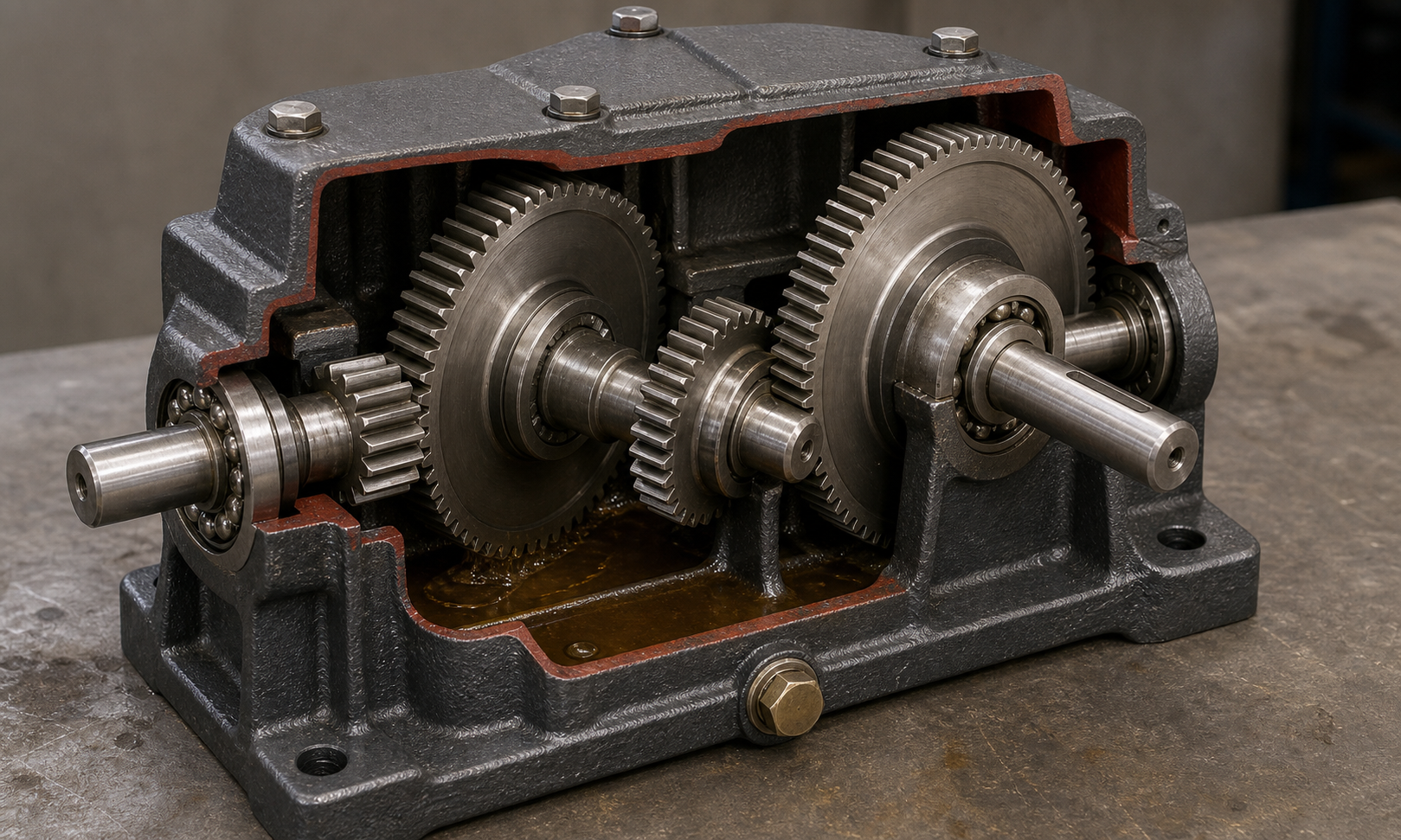

Figure 2: In a practical gearbox, the gear teeth are only part of the story. Shafts, bearings, housing stiffness, lubrication, and center distances all decide whether the chosen train runs quietly and survives its intended duty.

Worked example 1: a simple train with an idler

A workshop indexing table is driven by a 24-tooth motor pinion. To fit the machine frame, the designer inserts a 36-tooth idler gear between the motor pinion and a 72-tooth table gear. The motor runs at 900 rpm. Find the output speed and the final direction relative to the motor shaft.

The idler does not affect the ratio, so only the first and last gears matter:

i = Z_out / Z_in = 72 / 24 = 3

Therefore:

N_out = 900 / 3 = 300 rpm

Now count the meshes. The pinion meshes with the idler once, and the idler meshes with the output gear a second time. Two external meshes mean two reversals, so the output rotates in the same direction as the motor shaft.

The result is useful engineering intuition: the idler increased the shaft spacing and fixed the direction, but the 3:1 ratio came entirely from the 24-tooth driver and 72-tooth driven gear.

Worked example 2: compound reduction and output torque

A packaging conveyor needs much more torque than its small motor can produce directly. The gearbox uses a compound train with these gears:

• Stage 1: 18-tooth input pinion drives a 54-tooth gear on the countershaft.
• Stage 2: on the same countershaft, a 20-tooth pinion drives an 80-tooth output gear.

The motor runs at 1440 rpm and delivers 2.0 kW. Assume each gear stage is 96% efficient. Estimate overall ratio, output speed, input torque, output torque, and the tangential force at the output gear if its pitch diameter is 200 mm.

First stage ratio:

i_1 = 54 / 18 = 3

Second stage ratio:

i_2 = 80 / 20 = 4

Overall ratio:

i_total = 3 x 4 = 12

Output speed:

N_out = 1440 / 12 = 120 rpm

Input torque from motor power:

T_in = 9550 x P / N = 9550 x 2.0 / 1440 = 13.26 N.m

Total efficiency:

eta_total = 0.96 x 0.96 = 0.9216

Output torque:

T_out ~= 13.26 x 12 x 0.9216 = 146.7 N.m

The output gear pitch radius is:

r = 200 / 2 = 100 mm = 0.10 m

So the tangential force at the output gear tooth is:

F_t = T_out / r = 146.7 / 0.10 = 1467 N

This example shows why compound trains are so common. A modest motor torque of about 13 N.m becomes nearly 147 N.m at the output shaft while the gearbox stays compact enough for ordinary industrial packaging.

Worked example 3: why one large stage is often a bad idea

A designer wants 16:1 reduction from a spur-gear gearbox. One idea is a single stage using a 16-tooth pinion and a 256-tooth gear. Another idea is a two-stage compound train using 4:1 followed by 4:1. Why is the second option usually more practical?

The overall ratio of both approaches is the same:

i = 16

But the single-stage version forces a huge driven gear compared with the pinion. That makes center distance, housing diameter, pitch-line velocity variation, tooth deflection, and manufacturing cost much worse. The pinion may also become too small for healthy tooth geometry if the designer keeps shrinking it to chase ratio.

With two stages, the reduction is split:

i_total = 4 x 4 = 16

Now each gear pair is more balanced. Shaft spacing is easier to package, the individual gears are smaller, and the tooth proportions are usually healthier. The tradeoff is extra shafts, more bearings, and another mesh loss. Good design is therefore not about maximizing ratio in one step. It is about finding the most sensible compromise between size, efficiency, strength, and manufacturability.

Assumptions and their limits

The beginner formulas above assume rigid shafts, accurate tooth geometry, no slip, steady load, and good lubrication. Real gear trains bend under load. Shafts twist, bearings allow slight movement, housings breathe, and tooth contact shifts across the face width. Those effects change noise, local contact stress, and load sharing between stages.

Efficiency is also not one fixed magic number. At light load, bearing drag and oil churning can dominate. At high load, tooth sliding, elastic deformation, and local heating matter more. A gearbox that looks fine in a classroom ratio calculation may still overheat or run loudly in service if the stage layout, surface finish, or lubrication path is poor.

Common failure modes and how they show up

• Tooth-root bending failure: repeated transmitted load cracks the tooth near its root fillet, often after overload or poor alignment.
• Pitting: small fatigue craters appear on tooth flanks when contact stress exceeds surface durability for long enough.
• Scuffing and wear: the tooth surfaces lose material because the oil film breaks down or contamination enters the mesh.
• Bearing distress: the train ratio may be correct, but the shaft reactions overload bearings and the gearbox becomes noisy or hot.
• Backlash growth: wear or poor assembly increases lost motion, which shows up as rattle, positioning error, or impact loading during reversals.
• Torsional vibration: gear errors, shaft flexibility, and pulsing torque excite noise and dynamic tooth loads beyond the simple steady-state calculation.

Figure 3: Gear trains are chosen as whole systems. The tooth counts set ratio, but life and noise depend on shaft stiffness, bearing support, lubrication, and how smoothly the load enters and leaves the train.

Practical rules of thumb

• If the required ratio starts becoming awkward for one gear pair, split it across two stages before the driven gear becomes unnecessarily large.
• Do not let an idler fool you; it changes direction or spacing, not the basic ratio.
• Very small pinions deserve caution because undercutting and weak tooth roots become more likely unless the geometry is corrected deliberately.
• Check the direction of rotation by counting meshes, not by guessing from the sketch.
• Remember that every extra mesh improves packaging flexibility but also adds loss, noise sources, and manufacturing tolerance stack-up.
• Always check shaft, key, bearing, and housing loads along with tooth stress. The gears are rarely the only parts that can fail.

How standards treat gear trains

Standards-based design methods such as AGMA- and ISO-style gear rating do not treat a gearbox as "ratio only." They evaluate each mesh for bending stress at the tooth root, contact stress on the flank, dynamic effects, overload factors, face-load distribution, material quality, hardness, lubrication condition, and intended life. Then the designer still has to check shafts, keys, bearings, deflection, and thermal behavior around the rated meshes.

That standards mindset is useful even for beginners. It teaches you that a gear train is successful only when the chosen ratio, gear geometry, center distances, material strength, and supporting structure all work together. A ratio that looks perfect on paper can still be poor engineering if the train becomes too noisy, too hot, or too weak in one intermediate shaft.

Engineering judgment

The real beauty of a gear train is not that it "multiplies force" by magic. It is that it lets an engineer spread one difficult job across several manageable steps. Each step can use practical tooth counts, practical diameters, and practical shaft spacing. That is why gear trains appear everywhere from hand winches to industrial reducers.

When you evaluate a gear train, ask four questions in order. What total ratio is required? Can one stage do it without awkward geometry? How much efficiency can the machine afford to lose? And what do the intermediate shafts and bearings now have to carry? Those questions usually reveal whether the proposed train is elegant or merely convenient on a sketch.
